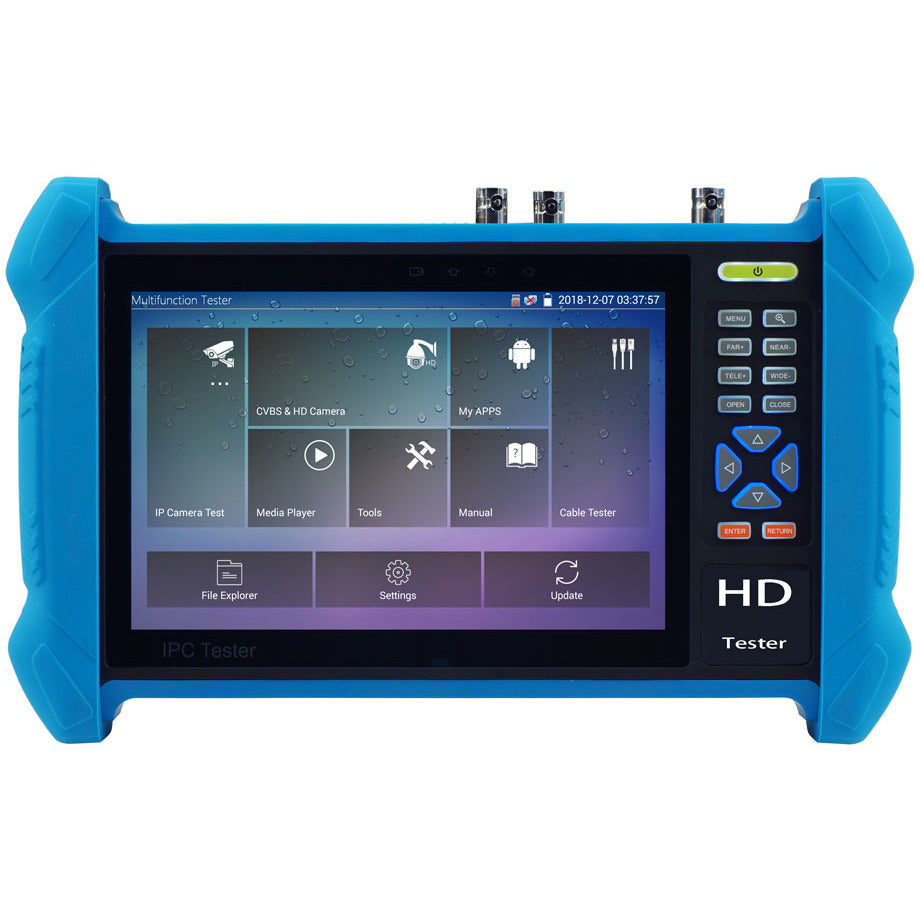

Vigilant Vision 7" Touchscreen Multi Function Test Monitor

Vigilant Vision 7" Touchscreen Multi Function Test Monitor

SKU:DS7TEST-2

Regular price £446.76 GBP
Regular price Sale price £446.76 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

SPECIFICATION

Panel Type 7″ capacitive touch screen
Case Type Ruggedised plastic
Maximum Resolution 1920×1200
IP Camera Test IP discovery, ONVIF,IPC test,POE power output, Hik, Dahua, Chrome
WI FI Built in, speed 150M, wireless camera display
Work Humidity 30 % – 90 %
Work Temperature -10 to +50 °C
Power On/Off Auto 5 – 30 mins

IN/OUT INTERFACE

CVBS 1 x BNC in, 1 x BNC out
Analogue video level meter, peak video signal level
SYNC level, colour bar chroma level
PTZ control RS485 , baud rate 600 – 115200bps,
Compatible with Pelco D/P, Samsung, Panasonic etc.
One channel colour bar generator PAL/NTSC
Co axial HD test 8MP TVI, 8MP CVI / AHD, 8MP HD-SDI, EX-SDI
HDMI input 1 channel HDMI input supports 1080P
HDMI output 1 channel HDMI output supports 1080P
Cable test function UTP , RJ45,TDR(optional),cable trace(optional)
Audio 1 channel audio test function. Headphone socket
Power On / Off Auto 5 – 30 mins
Audio Interface 1 channel audio test function. Headphone socket
Storage 8Gb SD card function
Stand Type Desk
Colour Blue
Weights and Dimensions 240 x 154 x 46mm
GROSS Weight 620 g


POWER

  • Power Supply: 12v DC 2 Amp
  • Battery: 57Wh polymer lithium battery, With 23W charger, fully charged 4~5 hours
  • Battery Life: After full charge(4-5 hours) normally 16 hours working time.

POWER OUT

  • DC24v 2A: Temporary camera supply, short circuit protection
  • DC12v 3A: Temporary camera supply
  • PoE: 48v PoE output max 25.5W
  • DC5v 2A: USB out put as power bank only

OSD LANGUAGE

English, Chinese, Korean, Russian, Italian, French, Polish, Spainish, Japanese, German, Turkish, Serbian, Czech, Portuguese

ACCESSORIES

UK 12v DC charger,3x carrying straps,BNC to BNC cable,DC 12v3A output cable, RS485 cable tester lead, audio test lead, RJ45 cable tester, carry case.

  • OSD: Main function icons for: IP camera test,CVBS and HD camera test, Cable test, Media player,Tools,My Apps, User manual, Update. Select main icon to enter sub menu. Also icons for file explorer, settings and theme
  • IP camera test: IP discovery, ONVIF, IPC test, POE power output, Hik, Dahua, Chrome
  • CVBS and HD: CVBS,TV out,8MP CVI, 8MP AHD, 8MP TVI, 8MP SDI
  • Cable test: Cable tester, RJ45 TDR test
  • Media player: HDMI in, Audio record, audio player, video player, RTSP player
  • Tools: Network tool, PoE & power info, Quick Office,Data monitor, flashlight, calculator
  • My Apps: Rapid video,Rapid IP discovery,iVMS4500HD,gDMSS HD lite,VLC,EZ View,Droi Notes, XMEye
