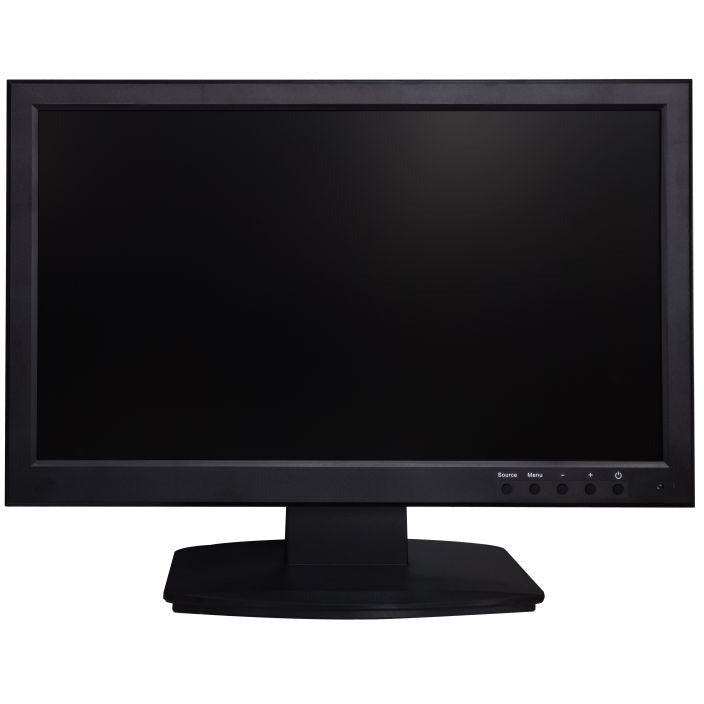

Vigilant Vision 19.5" LED 1080P Mega Pixel AHD Monitor
Vigilant Vision 19.5" LED 1080P Mega Pixel AHD Monitor
SKU:DS195AHDA
Regular price
£166.59 GBP
Regular price
Sale price
£166.59 GBP
Unit price
per
Out of stock
SPECIFICATION
IN/OUT INTERFACE
POWER
Panel Type | 19.5″ LED |
Case Type | Plastic |
MTBF | 50000 Hours |
Maximum Resolution | 1920 (H) x 1080 (V) |
Active Display Area | 434.88(H) x 238.68(V)mm |
Pixel Pitch | 0.2265 (H) x 0.221 (V)mm |
Bezel Thickness | Left/Right/Top 25mm – Bottom 36mm |
Contrast Ratio | 1000 : 1 Ratio |
Brightness | 250 cd/ m2 |
Response Time | 5 ms |
Viewing Angle | 178°/178° (H/V) |
Display Colours | 16.7 M |
Video Synchronization | Yes |
PC Compatibility | N/A |
Aspect Ratio | 16:9 |
VGA Auto Frequency correction | N/A |
Speakers | NO |
Number of Speakers | 0 |
Sound Demodulation | No |
Mute | N/A |
Work Humidity | 5% – 90% |
Work Temperature | 0 -40 C |
Power On/Off | Yes |
IN/OUT INTERFACE
Video Interface | 2 x HD analogue BNC in (CVBS,AHD,CVI,TVI) 2 x HD analogue BNC out (CVBS,AHD,CVI,TVI) HDMI in |
Audio Interface | N/A |
Power Interface | DC In x 1 |
Termination | 75 Ohms |
Safety & EMC Certification | FCC-DOC, CE, ROHS |
Vesa Standard Mount | 100 x 100mm |
Stand Type | Desk |
Colour | Black |
Button Position | Front, Bottom Right. |
Packing Dimension | 530 x 120 x 420mm |
NET Weight | 2.9 kg |
GROSS Weight | 3.6 kg |
POWER
- Power Supply: 220/240 AC
- Voltage: 12vDC
- Power Consumption: <25W
OSD CONTROLS
Contrast,Brightness,Saturation,Hue,Language, OSD position, OSD Time, Reset
OSD LANGUAGE
English,French, German, Spanish, Italian, Dutch, Polish, Russian, Danish
ACCESSORIES
Power cord, Adapter, Stand, User’s guide, HDMI cable
