Vigilant Vision

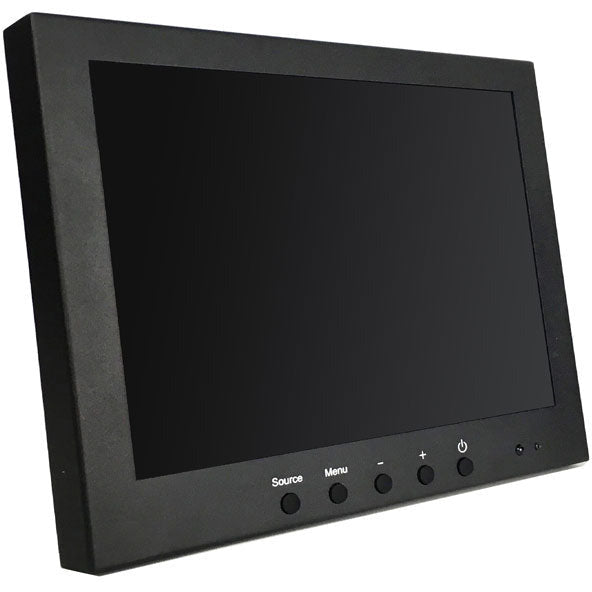

Vigilant Vision 10.1" LED Monitor. BNC In/Out, VGA, HDMI. Metal Case With Glass Front

Vigilant Vision 10.1" LED Monitor. BNC In/Out, VGA, HDMI. Metal Case With Glass Front

SKU:DSM10.1LED-WGF

Regular price £149.34 GBP
Regular price Sale price £149.34 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

SPECIFICATION

Panel Type 10.1″ (16:9) LED Monitor Glass Fronted
Case Type Metal
Maximum Resolution 1280 (H) x 800 (V)
Active Display Area 216.96 (H) × 135.60 (V) mm
Pixel Pitch 0.169 (V) × 0.169 (H) mm
Bezel Thickness L/R: 14.9 mm, T: 14.6mm, B: 26.2mm
Contrast Ratio 800 : 1 Ratio
Brightness 300 cd/ m²
Response Time 12 m.sec (G to G)
Viewing Angle 80/80/80/80 °
Display Colours 16.7 M
Video Synchronization Yes
PC Compatibility Yes
Aspect Ratio 16 : 9 Ratio
VGA Auto Frequency correction Yes
Speakers Yes
Number of Speakers 2
Sound Demodulation Stereo
Mute Yes
Work Humidity 0 % – 90 %
Work Temperature 0 to +50 °C
Volume +/- Power On/Off Yes
MTBF 50,000 hrs

IN/OUT INTERFACE

Video Interface VGA, HDMI, 1 x BNC in, 1 x BNC out, Audio
Audio Interface 3.5mm Jackplug
Power Interface DC In x 1
Termination 75 Ohms
Safety & EMC Certification FCC, CE, ROHS-2, Reach, Weee
Vesa Standard Mount 75 x 75 mm
Stand Type Picture Frame
Colour Black
Button Position Front
Packing Dimension 360mm x 320 mm x 90mm
NETT Weight 1.3 Kgs
GROSS Weight 1.75 Kgs

POWER
  • Power Supply: 12v 1AMP
  • Power Consumption: <10 Watt
  • Voltage: AC100-240V 50/60HZ

OSD CONTROLS

VIDEO-Picture, Brightness, Contrast, Colour, Sharpness, Tint, Colour Temp, Advance Control, Focus. AUDIO-Sound Mode, Balance, Bass, Treble, Virtual Surround, AVL. SETTING-Menu Language, Picture Format, Menu Timeout, Menu Transparency, Power On Status, Blue Screen, Colour System, Time Setup, System Reset

OSD LANGUAGE

English, French, German, Spanish, Italian, Russian, Portuguese, Polish, Arabic & Korean

ACCESSORIES

Power supply, Stand, Remote Control, User Guide, HDMI Cable
