AG Neovo TM-23 23-Inch 1080p Touch Screen Monitor

AG Neovo TM-23 23-Inch 1080p Touch Screen Monitor

SKU:TM-23

Regular price £387.69 GBP
Regular price Sale price £387.69 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

Features:

  • Full HD 1920 x 1080 resolution
  • Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
  • 10-point projected capacitive touch technology
  • Windows 10 ready – plug and play support for Windows 7/8/10
  • Flexible dual-hinge stand design to maximise viewing comfort for multiple users

Utilizing projected capacitive (PCAP) 10 point multi-touch technology, the TM-23 23-inch touch screen monitor delivers a smooth and precise touch response. Compatibility with Windows® 7, 8 & 10 touch functions and versatile connectivity makes connecting with media sources and peripheral devices easy. The ergonomic monitor stand, a 178-degree wide viewing angle, and tilt flexibility ranging from –5 to 90 degrees guarantees user comfort, making the TM-23 an ideal choice for public access, such as information kiosks and self-check-in kiosks.

10 POINT MULTI-TOUCH MONITOR

The TM-23 PCAP touch screen monitor, with 10-point touch capability, offers a smooth and responsive touch experience. Designed with a flat surface and edge-to-edge glass overlay, the TM-23 gives an invitingly modern appeal that fits the professional environment.


ERGONOMIC MONITORS MAXIMISE USERS COMFORT

With an ergonomic monitor stand, the TM-23 touch screen provides height adjustability and a wide tilt range from –5° to 90° to optimise users’ ergonomic working position and productivity. Given a 178-degree wide viewing angle, it allows multiple users to view a single screen comfortably.


EASY SYSTEM INTEGRATION

Plug-and-play multi-touch capability for systems with Windows 7/8/10, versatile connectivity (DisplayPort, HDMI, VGA) and built-in speakers enable effortless system integration. The built-in USB Port (USB 3.0) also allows a touch monitor easy connect to peripheral devices.

Specifications:

Panel
  • Panel Type
  • IPS
  • Panel Size
  • 23.0"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.265 mm
  • Brightness
  • 250 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 16.7M
  • Response Time
  • 5 ms
Frequency
  • Frequency (H)
  • 30 kHz-83 kHz
  • Frequency (V)
  • 50 Hz-76 Hz
Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.3 x 1
  • VGA
  • 15-Pin D-Sub x 1

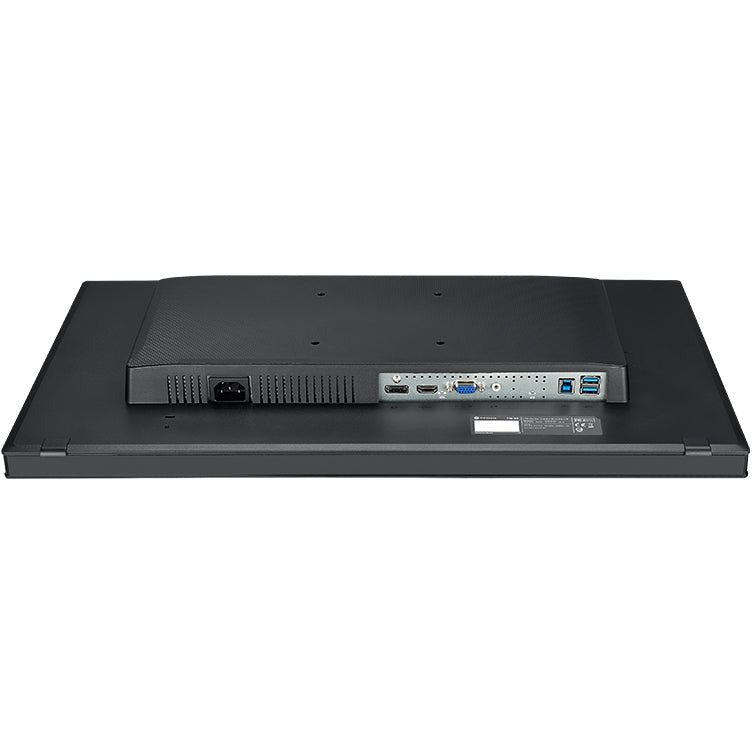

Other Connectivity
  • USB
  • USB HUB (3.0 x 4)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 2W x 2
Touch Screen
  • Technology
  • Projective Capacitive
  • Positional Accuracy
  • ± 1.0 mm
  • Panel Interface
  • USB (Type-B)
  • Multi-touch Plug & Play
  • 10-point touch Windows® 7、8、10、11
  • Single Touch Support by Driver
  • Windows XP
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 14W (On)
  • Standby Mode
  • < 0.7W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 2.4 mm (0.09")
  • Transmission Rate
  • > 90%
  • Hardness
  • > 7H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-85% (non-condensing)
Storage Conditions
  • Temperature
  • -25°C-55°C (-13°F-131°F)
  • Humidity
  • 5%-93% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm)
Stand
  • Tilt
  • -5° to 90°
  • Height Adjustment
  • 131.5-400.0 mm
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 561.0 x 400.0 x 238.5 mm (22.1" x 15.7" x 9.4")
  • Product w/o Base (W x H x D)
  • 561.0 x 338.2 x 57.2 mm (22.1" x 13.4" x 2.3")
  • Packaging (W x H x D)
  • 632.0 x 448.0 x 186.0 mm (24.9" x 17.6" x 7.3")
Weight
  • Product with Base
  • 6.6 kg (14.6 lb)
  • Product w/o Base
  • 4.3 kg (9.5 lb)
  • Packaging
  • 8.7 kg (19.2 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • FCC
  • LVD
  • BSMI
  • WEEE
  • RoHS
  • REACH
  • EAC
  • UKCA
Accessories
  • Supplied
  • Audio Cable
  • CD
  • HDMI Cable
  • Power Cord
  • USB Cable
  • VGA Cable
  • Warranty Card
Optional Accessories
  • Wall Mount (Landscape only)
  • PMK-01
  • WMK-01
  • WMK-03
