AG Neovo

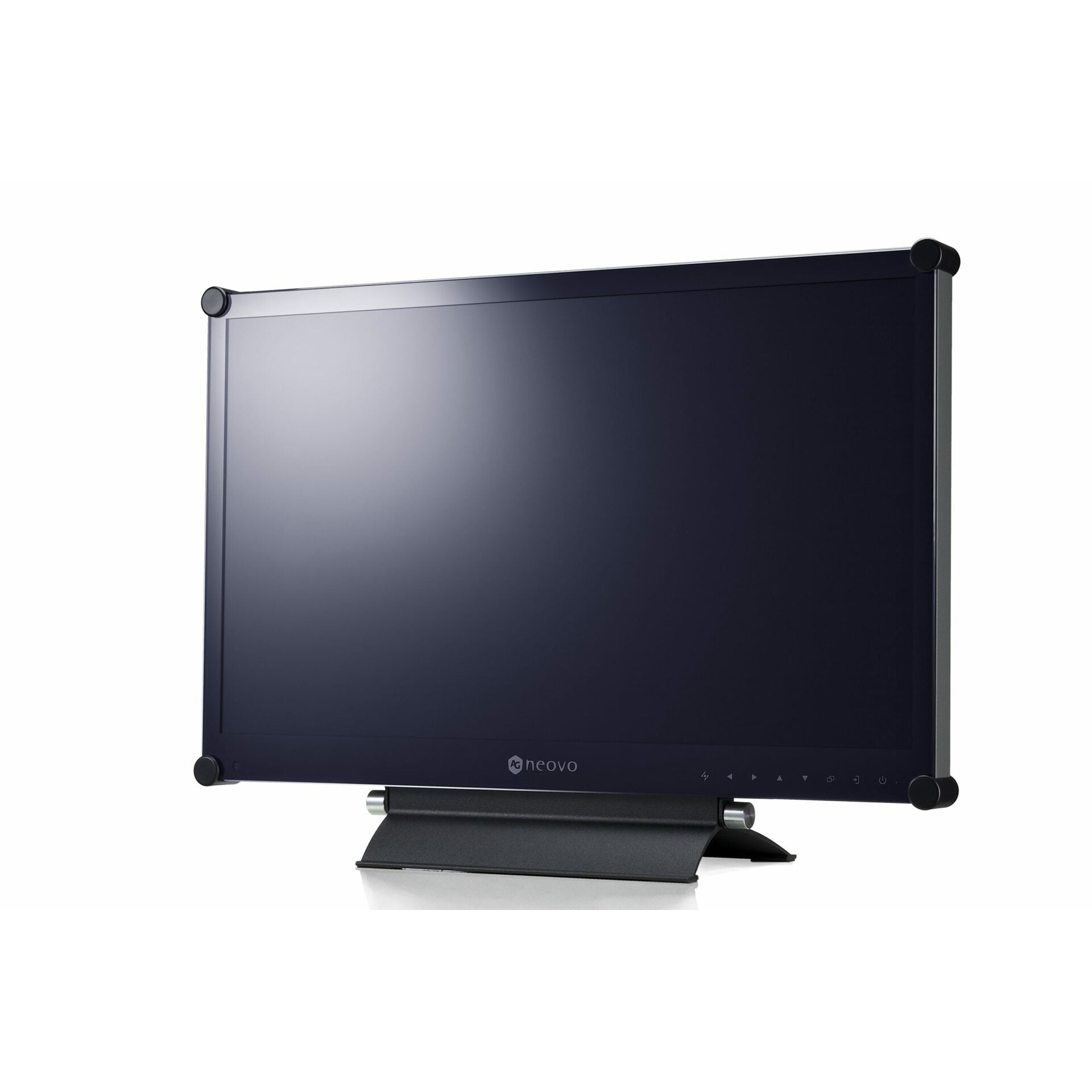

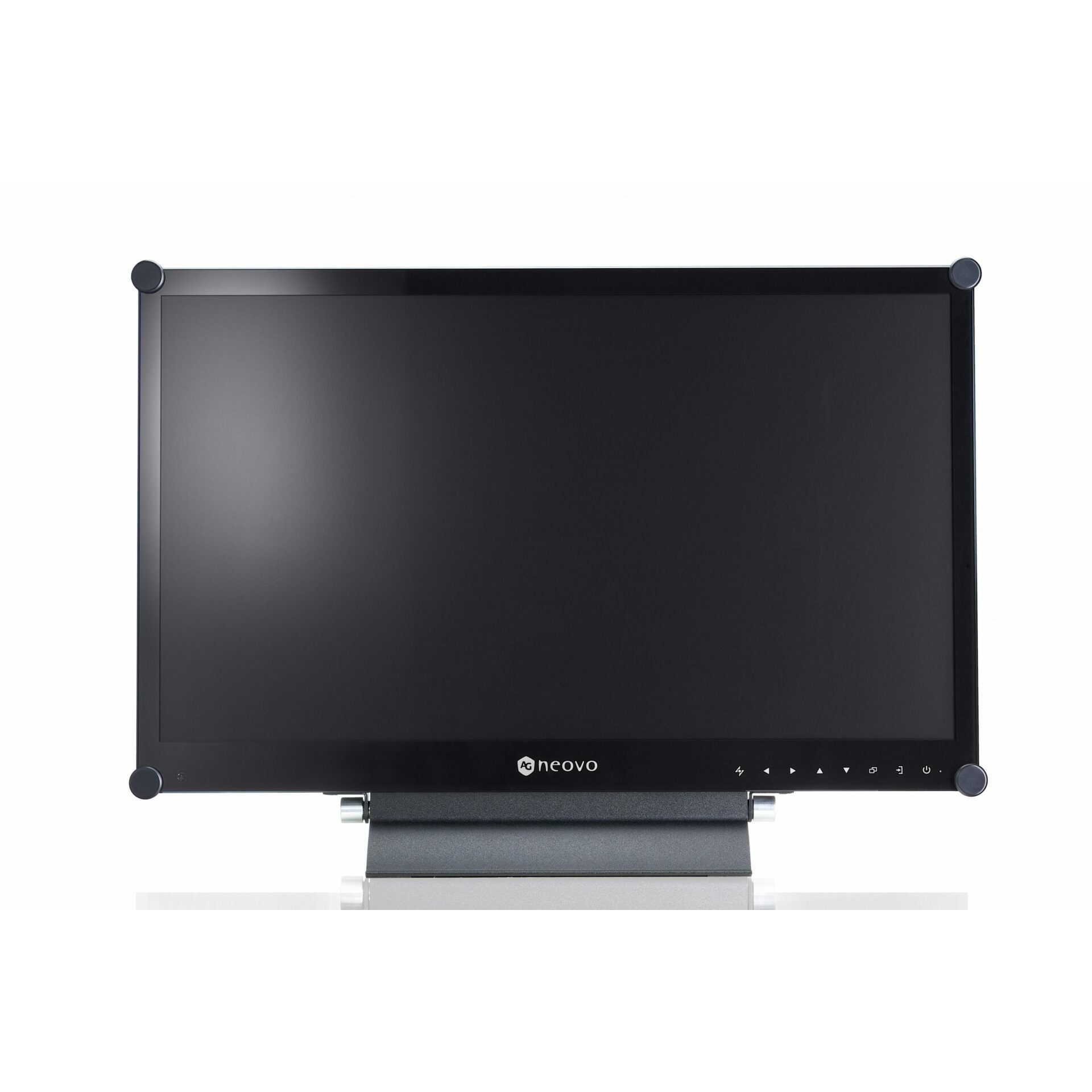

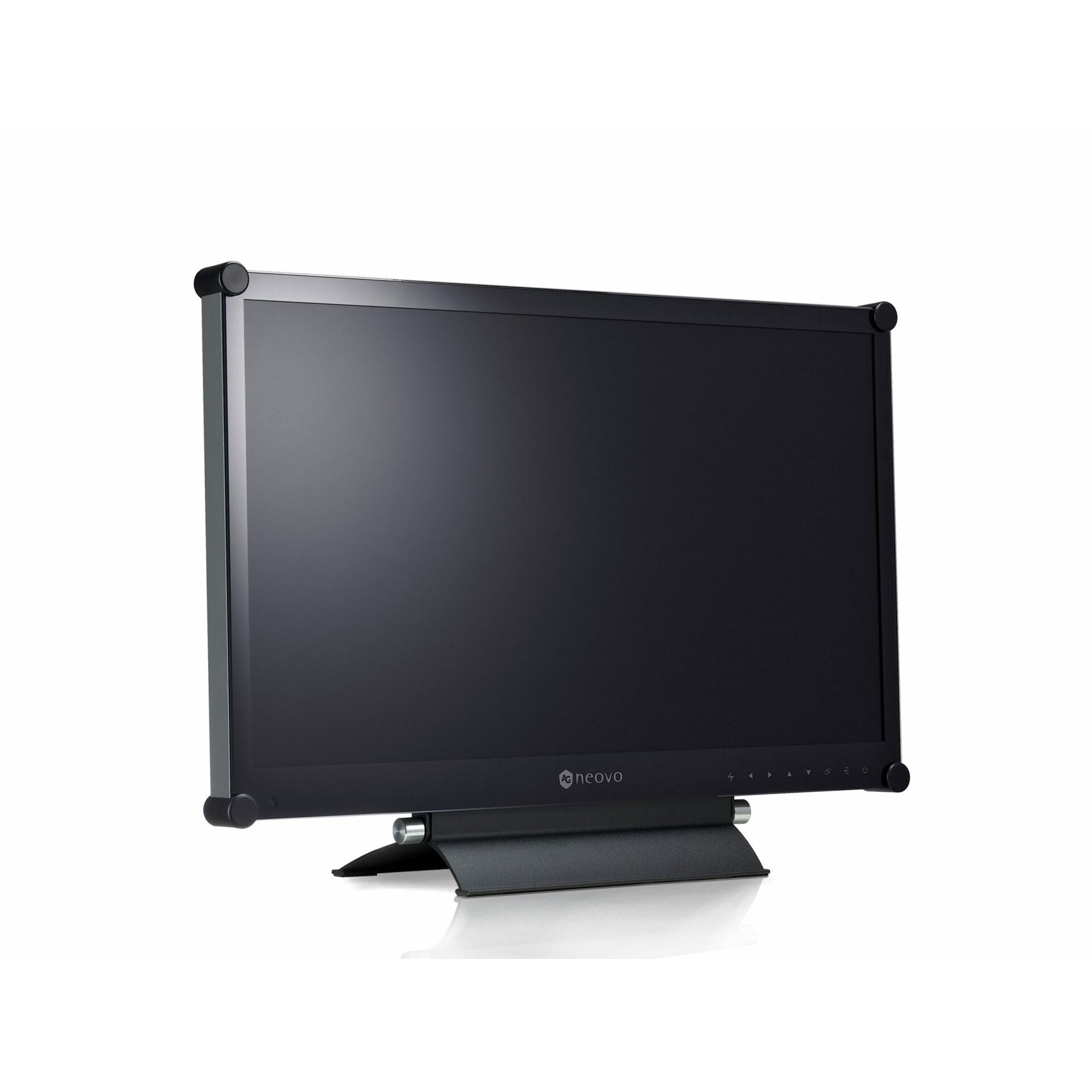

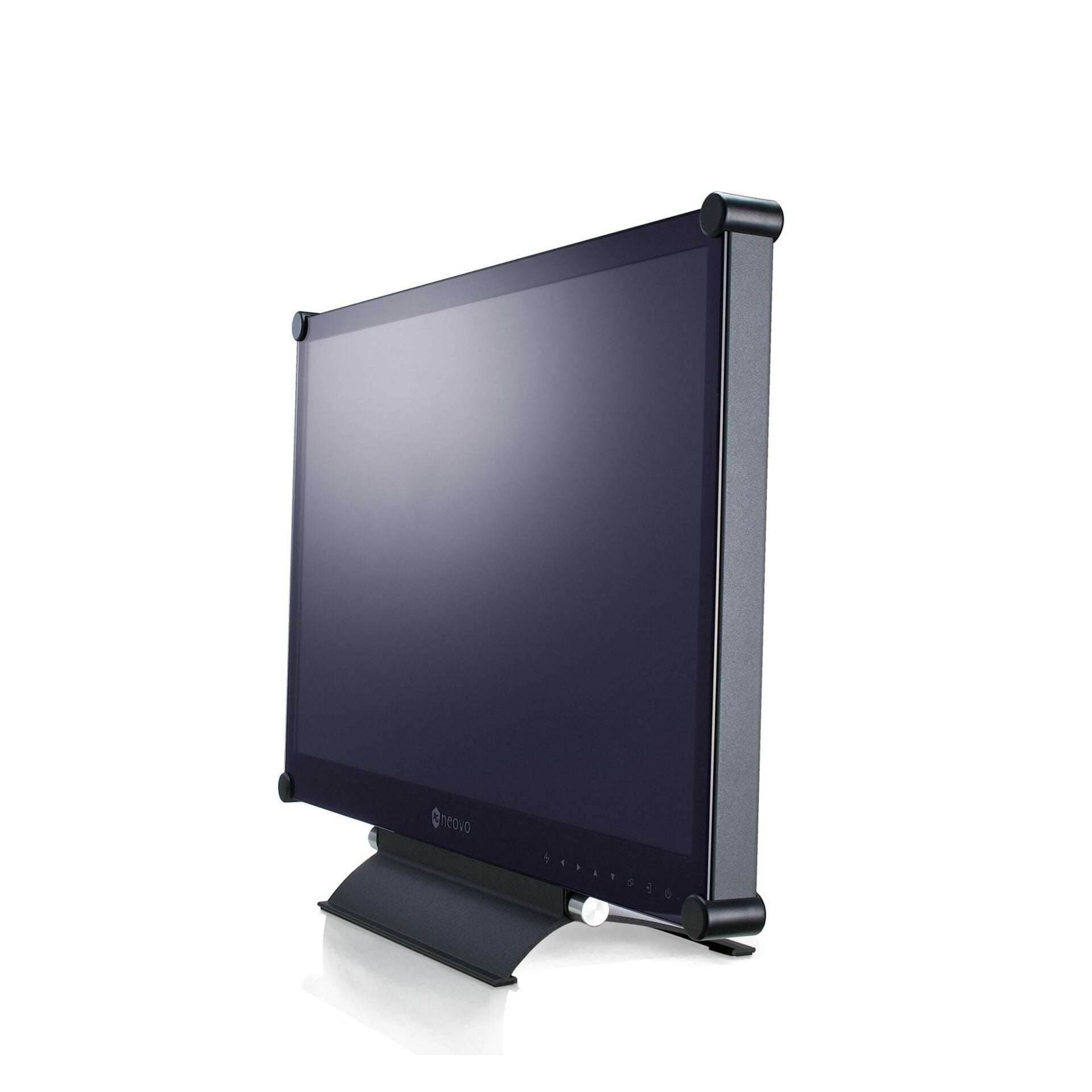

AG Neovo RX-22G 22-Inch 1080p Security Monitor With Metal Casing

AG Neovo RX-22G 22-Inch 1080p Security Monitor With Metal Casing

SKU:RX-22G

Regular price £538.67 GBP
Regular price Sale price £538.67 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

Features:

  • Full HD 1920 x 1080 resolution
  • Versatile connectivity: VGA, DVI, HDMI, DisplayPort, Composite (BNC), S-Video inputs
  • Composite (BNC) passive loop-through output port
  • Anti-Burn-in technology prevents image ghosting
  • NeoV Optical Glass screen protects the display from scratches and other damages

The RX-22G 22-inch security monitor for video surveillance adopts a commercial-grade panel built to last and perform in 24/7 operations. The monitor features Full HD 1080p, industrial-grade components, video enhancement controls and AG Neovo’s patented Anti-Burn-in™ technology, ensuring high performance and stable image quality. With NeoV™ Optical Glass screen and metal casing, the monitor is protected from incidental damage and impact to withstand in critical environments.

VERSATILE CONNECTIVITY WITH BNC AND HDMI INPUTS

The RX-22G 22-inch security monitor for video surveillance supports analogue (VGA, S-Video, Composite) video inputs and digital (DisplayPort, HDMI, DVI). The Composite (BNC) input/output ports allow connecting CCTV cameras directly to the monitor for instant monitoring. This also allows for testing while feeding the videos to the DVR system or other devices. For better configuration, the RX-22G is also equipped with an HDMI connector, allowing receiving digital input sources.


SUPER RESOLUTION

To improving the clarity of security footage in real-time, the RX-22G monitor’s super-resolution technology can upscale and enhance the images to present more detail in layered texture horizontally and vertically. It essentially makes an image with a higher resolution in a more natural way.


CCTV MODE

AG Neovo’s pre-configured CCTV mode can maximise image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!


NIGHT MODE

While applying to critical surveillance, such as sailing in the dark seas, users have higher image clarity requirements for the monitors in low-light environments. Night Mode features dimming the backlight level in dark environments and remaining the clear viewing with high visibility for reliable navigation.


LCD SCREEN BURN IN PREVENTION

AG Neovo’s patented Anti-Burn-in technology tackles LCD burn-in effect, prevents a ghost image on the screen. It assures an extended lifespan for the security monitors and secure user’s investment.


ROBUST DESIGN FOR CRITICAL SURVEILLANCE

A professional security monitor is built for 24/7 use in challenging conditions. The RX-22G fits with NeoV Optical Glass screen and durable metal casing to prevent scratching and high-velocity impacts, also providing enhanced heat dissipation to ensure proper operation.


PID COMMAND & CTRL FOR RS232 SYSTEM INTEGRATION

PID Command & Ctrl software helps integrators easily control and integrate the RX-22G 22-inch security monitor for video surveillance via RS232 connections. Users can quickly find command codes for programming into external control systems for remote management, OSD-related settings, and easy control on deployed displays on its simple and intuitive interface.

Specifications:

Panel
  • Panel Type
  • TN
  • Panel Size
  • 21.5"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.248 mm
  • Brightness
  • 250 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 170°/160°
  • Display Colour
  • 16.7M
  • Response Time
  • 3 ms
Frequency
  • Frequency (H)
  • 24 kHz-83 kHz
  • Frequency (V)
  • 50 Hz-75 Hz

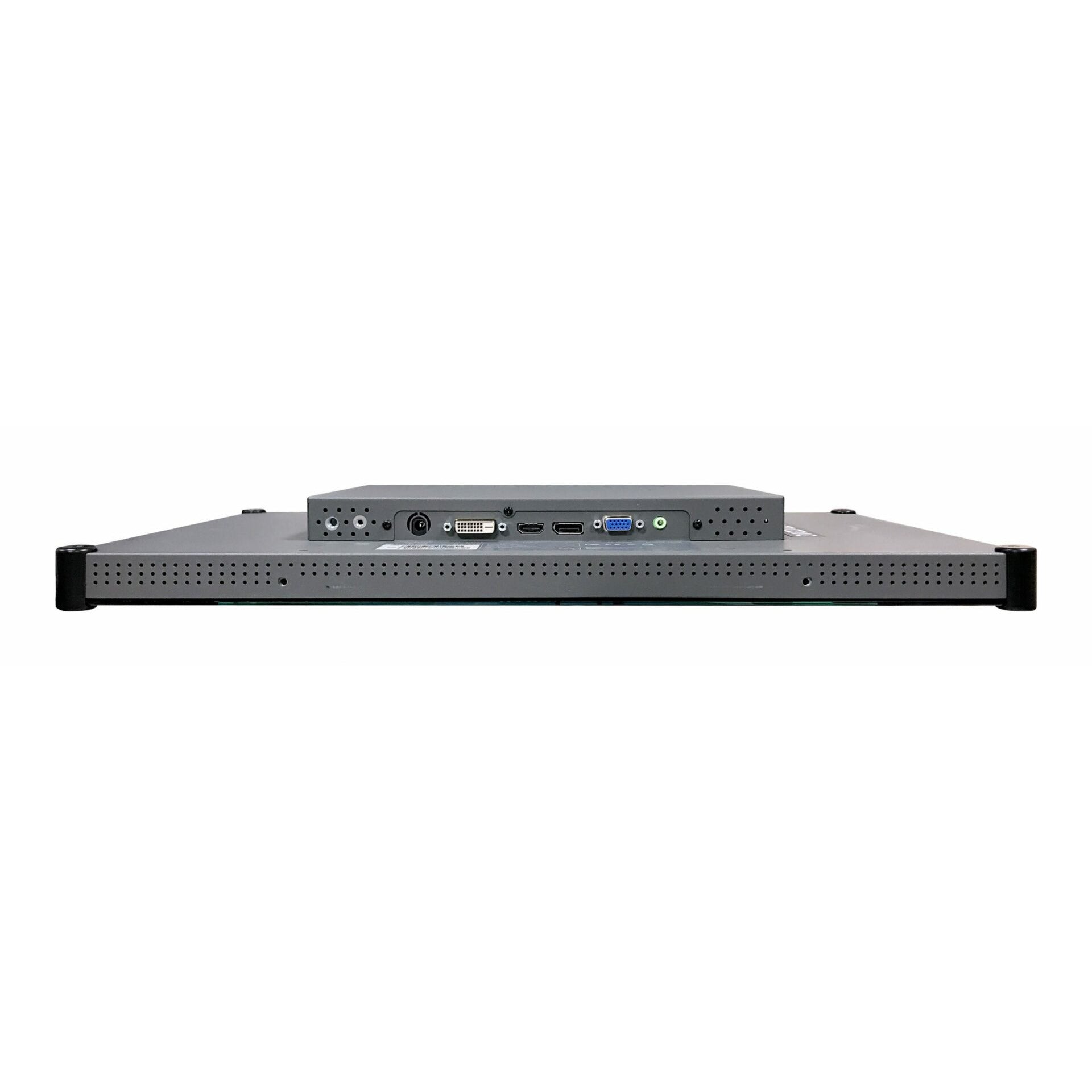

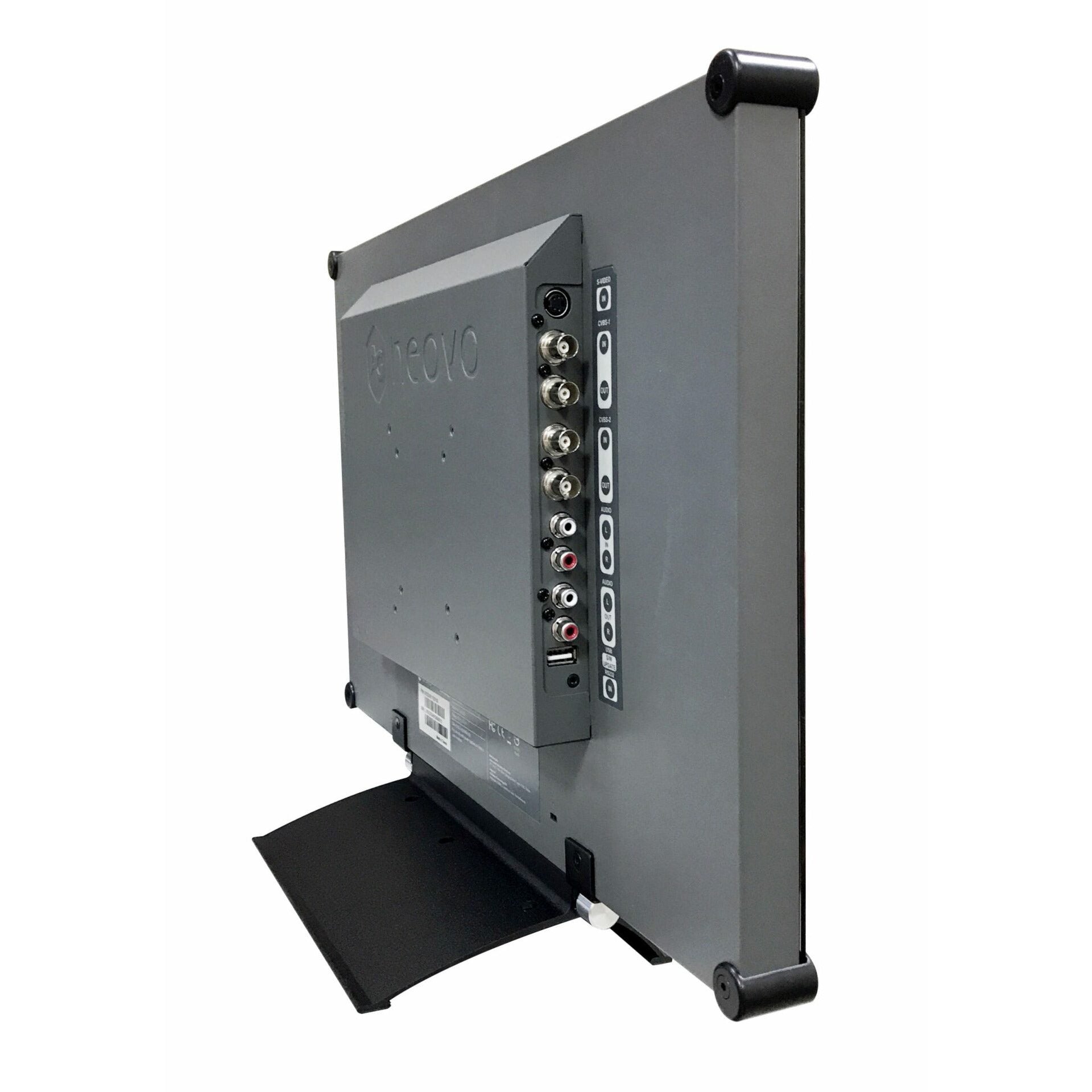

Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.4 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
  • Composite
  • BNC x 2
  • S-Video
  • 4-Pin mini DIN x 1
Signal Output
  • Composite
  • BNC x 2
External Control
  • RS232 In
  • 2.5 mm Phone Jack
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Stereo Audio Jack (RCA)
  • Audio Out
  • Stereo Audio Jack (RCA)
  • Internal Speakers
  • 2W x 2
Power
  • Power Supply
  • External
  • Power Requirements
  • DC 12V
  • 2.1A
  • On Mode
  • 16W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.0 mm (0.12")
  • Reflection Rate
  • < 1%
  • Transmission Rate
  • > 97%
  • Hardness
  • > 9H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-90% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-95% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (100 x 100 mm & 75 x 75 mm)
Stand
  • Tilt
  • 0° to 17°
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product with Base (W x H x D)
  • 513.2 x 368.5 x 155.0 mm (20.2" x 14.5" x 6.1")
  • Product w/o Base (W x H x D)
  • 513.2 x 324.3 x 56.2 mm (20.2" x 12.8" x 2.2")
  • Packaging (W x H x D)
  • 614.0 x 477.0 x 204.0 mm (24.2" x 18.8" x 8.0")
Weight
  • Product with Base
  • 6.7 kg (14.8 lb)
  • Product w/o Base
  • 6.0 kg (13.2 lb)
  • Packaging
  • 8.8 kg (19.4 lb)
Regulation Approval
  • Certifications & Compliance
  • BSMI
  • CB
  • CE
  • FCC
  • CCC
  • RoHS
  • WEEE
  • REACH
  • ICES-003(Issue 7)
Accessories
  • Supplied
  • Audio Cable
  • Power Adaptor
  • Power Cord
  • Quick Start Guide
  • VGA Cable
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • PMK-01
  • WMA-01
  • WMK-01
  • WMK-03
  • Desk mount (Landscape only)
  • DMC-01
  • DMC-02D
  • DMS-01D
  • ES-02
