AG Neovo

AG Neovo QX-32 32-Inch 4K Surveillance Display

AG Neovo QX-32 32-Inch 4K Surveillance Display

SKU:QX-32

Regular price £1,511.92 GBP
Regular price Sale price £1,511.92 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

Features

  • 4K UHD 3840 x 2160 resolution
  • Versatile connectivity: VGA, DVI, HDMI, DisplayPort inputs
  • Anti-Burn-in technology prevents image ghosting
  • NeoV Optical Glass screen protects the display from scratches and other damages
  • RS232/ RJ45 connection for easy control and management

The QX-32 32-Inch 4K surveillance display is designed for high-resolution security systems. Multi-screen viewing enables the simultaneous display of multiple signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors, the QX-32 provides the gain in clarity required for real-time and up-close monitoring in traffic management centres, casinos, emergency operations centres and other public installations.

EXPERIENCE THE 4K DIFFERENCE

Don’t miss a single detail with this powerful 4K security & surveillance display. View smooth 4K video and graphics with a new level of detail and clarity. Offering 8.3 million pixels, the QX-32 32-Inch 4K surveillance display provides sufficient resolution for even the most demanding surveillance and digital signage applications.


EASY CONTROL AND INTEGRATION

Its built-in RS-232 and Ethernet control capabilities make the QX-Series easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation, the QX-Series can be managed in multiple scenarios and applications.

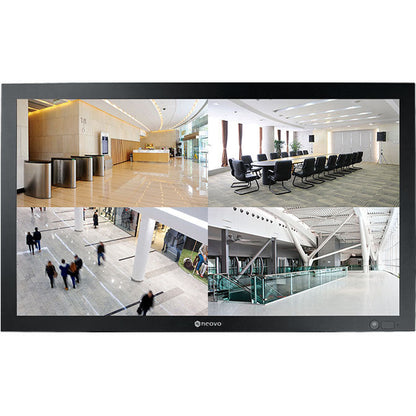

MULTI-SCREEN VIEWER; ONE DISPLAY, FOUR SCREENS

Beyond the traditional two-input Picture-by-Picture (PIP) feature, the QX-Series’multi-screen viewer can display up to four full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true Full HD content.


INDUSTRY-LEADING RELIABILITY

Designed for 24/7 operation, these durable metal-housed displays protected with NeoV™ Optical Glass screen take advantage of superior components to ensure a long product lifetime. Its integrated HeatControl sensors automatically activate the internal cooling fans, which is crucial when the temperature rises in mission-critical installations.


PID COMMAND & CTRL SOFTWARE

PID Command & Ctrl is a software thatallows users to control this 32-Inch 4K surveillance display via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control on deployed displays. It also can be used to create video walls within minutes and assist system integrators with setting up displays.

Specification

Panel

  • Panel Type
  • VA
  • Panel Size
  • 32.0"
  • Max. Resolution
  • UHD 3840 x 2160
  • Pixel Pitch
  • 0.185 mm
  • Brightness
  • 350 cd/m²
  • Contrast Ratio
  • 20,000,000:1 (DCR)
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 1.07B
  • Colour Gamut
  • sRGB 100%
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze 25%),3H Hard Coating
Frequency
  • Frequency (H)
  • 31 kHz-92 kHz
  • Frequency (V)
  • 48 Hz-85 Hz
Signal Input
  • DisplayPort
  • 1.2 x 1
  • HDMI
  • 2.0 x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
External Control
  • RS232 In
  • 9-Pin D-Sub
  • LAN
  • RJ45 x 1
Other Connectivity
  • USB
  • 2.0 x 1 (Service Port)
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Internal Speakers
  • 10W x 2
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 50.1W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.3W
Glass
  • Thickness
  • 3.0 mm (0.12")
  • Reflection Rate
  • < 1%
  • Transmission Rate
  • > 97%
  • Hardness
  • > 9H
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 10%-90% (non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-95% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (200 x 200 mm & 400 x 200 mm)
Dimensions
  • Product w/o Base (W x H x D)
  • 771.0 x 461.0 x 77.0 mm (30.4" x 18.1" x 2.8")
  • Packaging (W x H x D)
  • 860.0 x 555.0 x 150.0 mm (33.9" x 21.9" x 5.9")
Weight
  • Product w/o Base
  • 15.7 kg (34.6 lb)
  • Packaging
  • 19.0 kg (41.9 lb)
Regulation Approval
  • Certifications & Compliance
  • CE
  • LVD
  • FCC
  • RoHS
  • WEEE
  • REACH
  • EAC
Accessories
  • Supplied
  • Batteries
  • HDMI Cable
  • Power Cord
  • Quick Start Guide
  • Remote Control
Optional Accessories
  • Ceiling Mount (Landscape only)
  • CMP-01 + LMK-02
  • CMP-01 + WMK-03
  • Wall Mount (Landscape only)
  • LMA-01
  • LMA-02
  • LMK-02
  • WMA-01
  • WMK-03
  • Floor Mount (Landscape only)
  • FMC-02
  • FMS-01
  • FMS-02
  • Desk mount (Landscape only)
  • DTS-01
