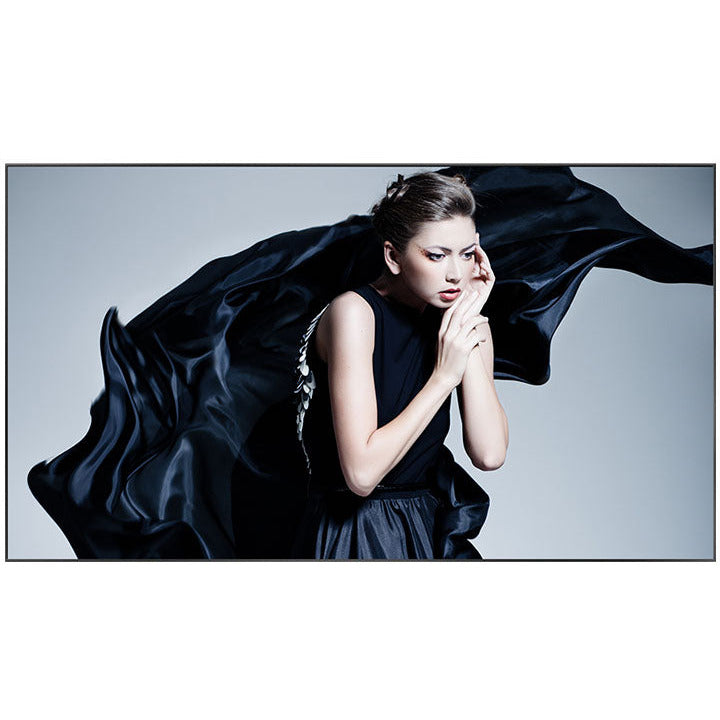

AG Neovo PN-46D 46-Inch 1080p 5.7mm Ultra Narrow Bezel Video Wall Display

AG Neovo PN-46D 46-Inch 1080p 5.7mm Ultra Narrow Bezel Video Wall Display

SKU:PN-46D

Regular price £1,981.93 GBP
Regular price Sale price £1,981.93 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Features

  • Full HD 1920 x 1080 resolution
  • 5.7mm narrow bezel for seamless LCD video walls
  • 500 nits brightness panel offers clear images in bright areas
  • DVI daisy-chain support for easy video wall installation
  • PiP/PbP functions enable multi-source viewing simultaneously

The PN-46D 46-inch narrow bezel video wall display is designed for professional video wall applications. Given the built-in scheduler, OPS slot, and UniWall™ function, this premium display is easy to set up and maintain up to 10×10 display configuration. With 500 nits brightness and premium-grade panels, visually stunning video walls can display in demanding environments — from large public venues to 24/7 operation control rooms.

PROFESSIONAL VIDEO WALLS

This 46-inch narrow bezel video wall display features 5.7 mm width (bezel to bezel) to create seamless images for an uninterrupted visual experience. For a complete video wall set up, up to 15 x 10 tiling is supported via DisplayPort and DVI interfaces.

COMMERCIAL-GRADE PANEL FOR 24/7 USE

Designed for 24/7 operation, PN-46D video wall display is produced to meet the highest professional standard and take advantage of superior components to ensure a long product lifetime in demanding environments.

PATENTED ANTI-BURN-IN™ TECHNOLOGY

To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.

PIP/PBP VIEWER MODE

The display enables flexible viewing with PiP/PbP functions – inset or swap window display main screen, sub-screen, and even split-screen image formats.

BUILT-IN HEATCONTROL SENSORS

The built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises.

EMBEDDED IMAGE ENHANCER

The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, Noise Reduction, and Freeze to solve image issues – offer crystal clarity to the most demanding environments.

Specification

Panel
  • Panel Type
  • VA
  • Panel Size
  • 46.0"
  • Max. Resolution
  • FHD 1920 x 1080
  • Pixel Pitch
  • 0.530 mm
  • Brightness
  • 500 cd/m²
  • Contrast Ratio
  • 3500:1
  • Viewing Angle (H/V)
  • 178°/178°
  • Display Colour
  • 16.7M
  • Colour Gamut
  • NTSC 72%
  • Response Time
  • 5 ms
  • Surface Treatment
  • Anti-Glare Treatment (Haze 25%)
  • 2H Hard Coating
Frequency
  • Frequency (H)
  • 31 kHz-92 kHz
  • Frequency (V)
  • 48 Hz-85 Hz
Signal Input
  • DisplayPort
  • x 1
  • HDMI
  • 1.3b x 1
  • DVI
  • 24-Pin DVI-D
  • VGA
  • 15-Pin D-Sub x 1
  • Component
  • BNC x 1
  • Composite
  • BNC x 1 (Share with Component-Y )
Signal Output
  • DVI
  • 29-Pin DVI-I x 1 (VGA)
External Control
  • IR In
  • 3.5 mm Phone Jack
  • IR Out
  • 3.5 mm Phone Jack
  • RS232 In
  • 9-Pin D-Sub
  • RS232 Out
  • 9-Pin D-Sub
  • LAN
  • RJ45 x 1
Other Connectivity
  • OPS Slot
  • Yes
Audio
  • Audio In
  • Stereo Audio Jack (3.5 mm)
  • Stereo Audio Jack (RCA)
  • Audio Out
  • Stereo Audio Jack (RCA)
  • Internal Speakers
  • 10W x 2
Power
  • Power Supply
  • Internal
  • Power Requirements
  • AC 100-240V
  • 50/60 Hz
  • On Mode
  • 135W (On)
  • Standby Mode
  • < 0.5W
  • Off Mode
  • < 0.5W
Operating Conditions
  • Temperature
  • 0°C-40°C (32°F-104°F)
  • Humidity
  • 20%-80%(non-condensing)
Storage Conditions
  • Temperature
  • -20°C-60°C (-4°F-140°F)
  • Humidity
  • 5%-90% (non-condensing)
Mounting
  • VESA FPMPMI
  • Yes (400 x 200 mm & 200 x 200 mm)
Security
  • Kensington Security Slot
  • Yes
Dimensions
  • Product w/o Base (W x H x D)
  • 1024.0 x 578.6 x 125.7 mm (40.3" x 22.8" x 4.9")
  • Packaging (W x H x D)
  • 1290.0 x 865.0 x 363.0 mm (50.8" x 34.0" x 14.3")
Weight
  • Product w/o Base
  • 23.0 kg (50.7 lb)
  • Packaging
  • 32.4 kg (71.4 lb)
Regulation Approval
  • Certifications & Compliance
  • FCC
  • CE
  • BSMI
  • LVD
  • WEEE
  • RoHS
  • REACH
  • EAC
Accessories
  • Supplied
  • Batteries
  • CD
  • IR Sensor
  • Power Cord
  • Power Switch Cover and Screw
  • Remote Control
  • VGA Cable
Optional Accessories
  • Floor Mount
  • FMC-02
  • FMS-01
  • FMS-02
  • Ceiling Mount
  • CMP-01 + LMK-02
  • CMP-01 + WMK-03
  • Video Wall Mount
  • VWM-01
  • VWM-02
  • Wall Mount
  • LMA-01
  • LMK-02
  • WMA-01
  • WMK-03
  • Desk Mount
  • DTS-01
  • Ceiling Mount (Landscape only)
  • CMP-01 + LMK-01
  • Wall Mount (Landscape only)
  • LMA-02
  • LMK-01
  • LMK-03
