NEC

NEC MultiSync® ME501-MPi4 LCD 50" Midrange Large Format Display (incl. NEC MediaPlayer)

NEC MultiSync® ME501-MPi4 LCD 50" Midrange Large Format Display (incl. NEC MediaPlayer)

SKU:60005373

Regular price £1,106.17 GBP
Regular price Sale price £1,106.17 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Digital Signage and real-time information deployed easily

Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.

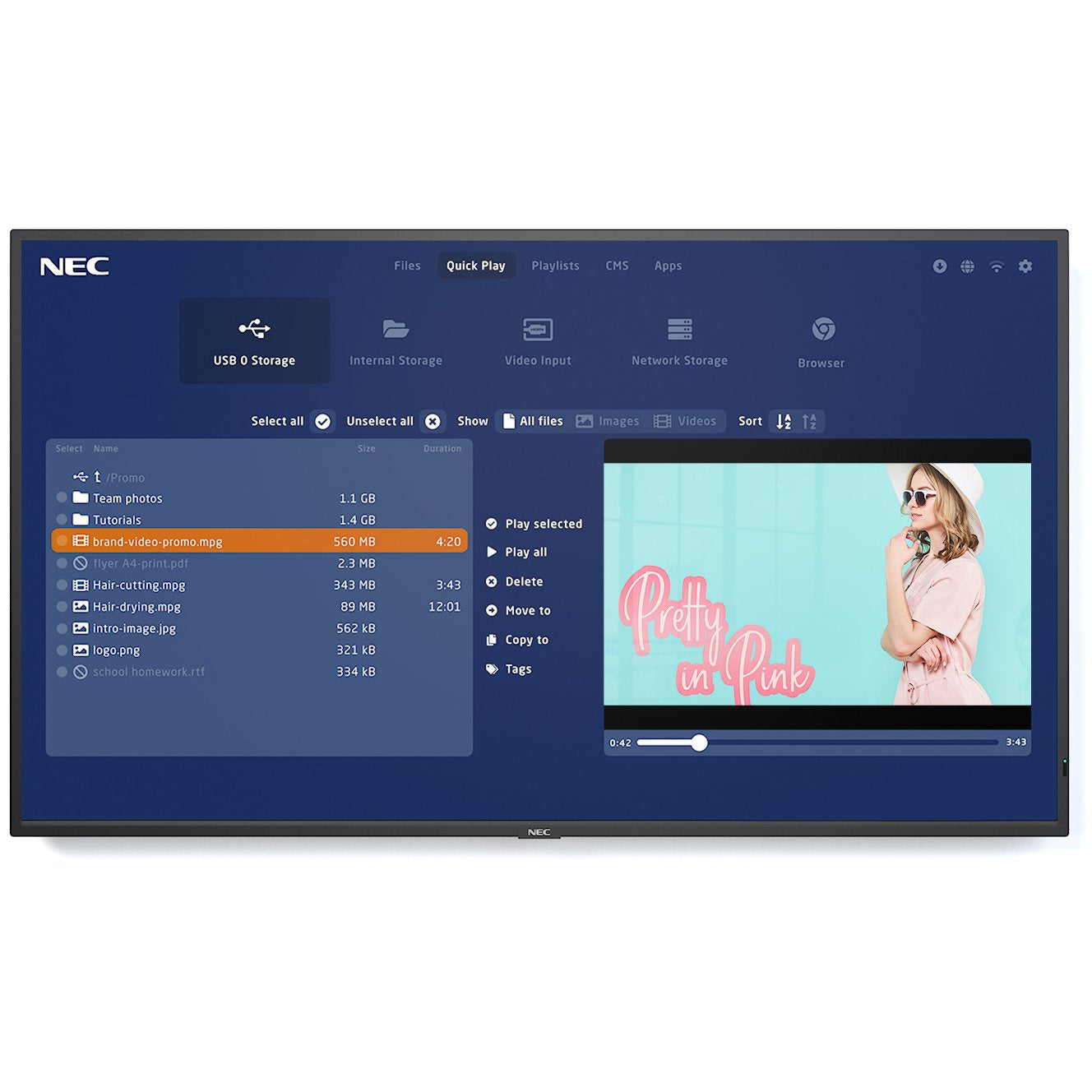

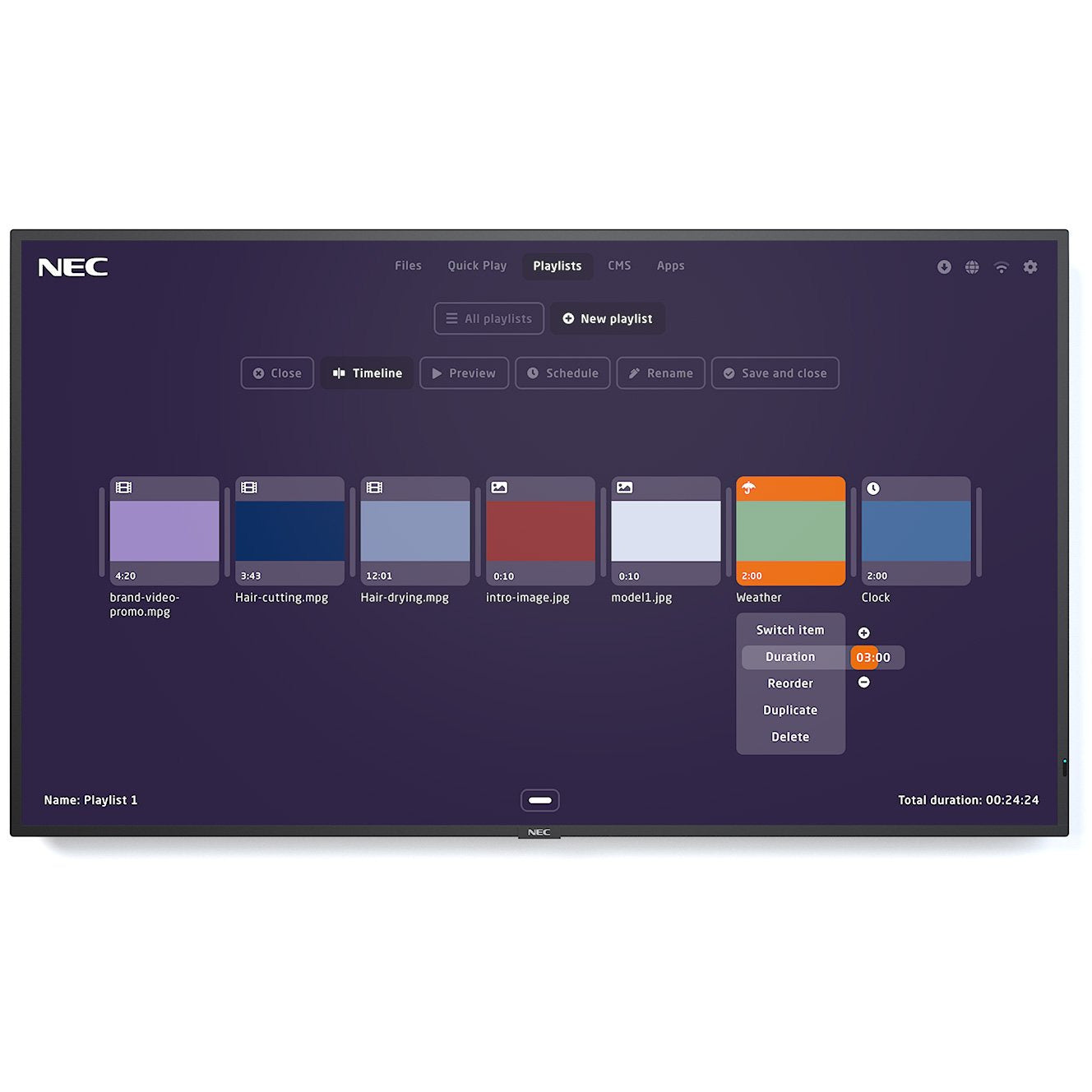

The MultiSync® ME-MPi4 displays offer out-of-the-box playback for local retailers, restaurants and small business enterprises. With the NEC MediaPlayer you can deliver dynamic advertising and infotainment to your customers whilst benefiting from the efficiencies gleaned through digitisation.

Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.

Benefits

  • Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
  • Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
  • Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
  • Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation

DISPLAY

Panel Technology VA with Direct LED backlights
Screen Size [inch/cm] 50 / 125.7
Aspect Ratio 16:9
Brightness [cd/m²] 400
Contrast Ratio ≥ 8000:1 1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (8bit + FRC)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Standard (1)
Supported Orientation Landscape; Portrait

RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 26 - 135
Vertical Frequency [Hz] 23 - 86

CONNECTIVITY
Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue 1 x 3,5 mm jack
Input Detect Custom; First; Last

OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot RPi Compute Module 4

SENSORS
Temperature Sensor Integrated, 3 sensors, triggered actions programmable

ELECTRICAL
Power Consumption Eco/max. [W] 85 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60

MECHANICAL
Dimensions (W x H x D) [mm] 1,128.4 x 649 x 62.6
Weight [kg] 17.3
Bezel Width [mm] 14.9
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 1,298 x 860 x 224
Packaging Weight [kg] 24.1
Colour Bezel Pantone 426M (black)
Material Metal

MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Internal Storage 32GB eMMC (2GB occupied by OS, 28GB available for files)
Processor Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz
Supported Image Formats JPG / JPEG; PNG
Supported Video Formats MP4 / MOV /AVI / MPEG/ WMV / MPG / M4V / VOB / MKV (H.265); MPEG-2; M4K; VP8 / VP9; HTML5
Supported Audio Formats MP3; AAC; AC-3

AVAILABLE OPTIONS
Accessories Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-65 L, PDW S 32-65 P)

GREEN FEATURES
Energy Efficiency Energy consumption: 85 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0

ADDITIONAL FEATURES
Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours 18/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Disable IR Functionality; Emergency Notification; Emergency Notification
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
