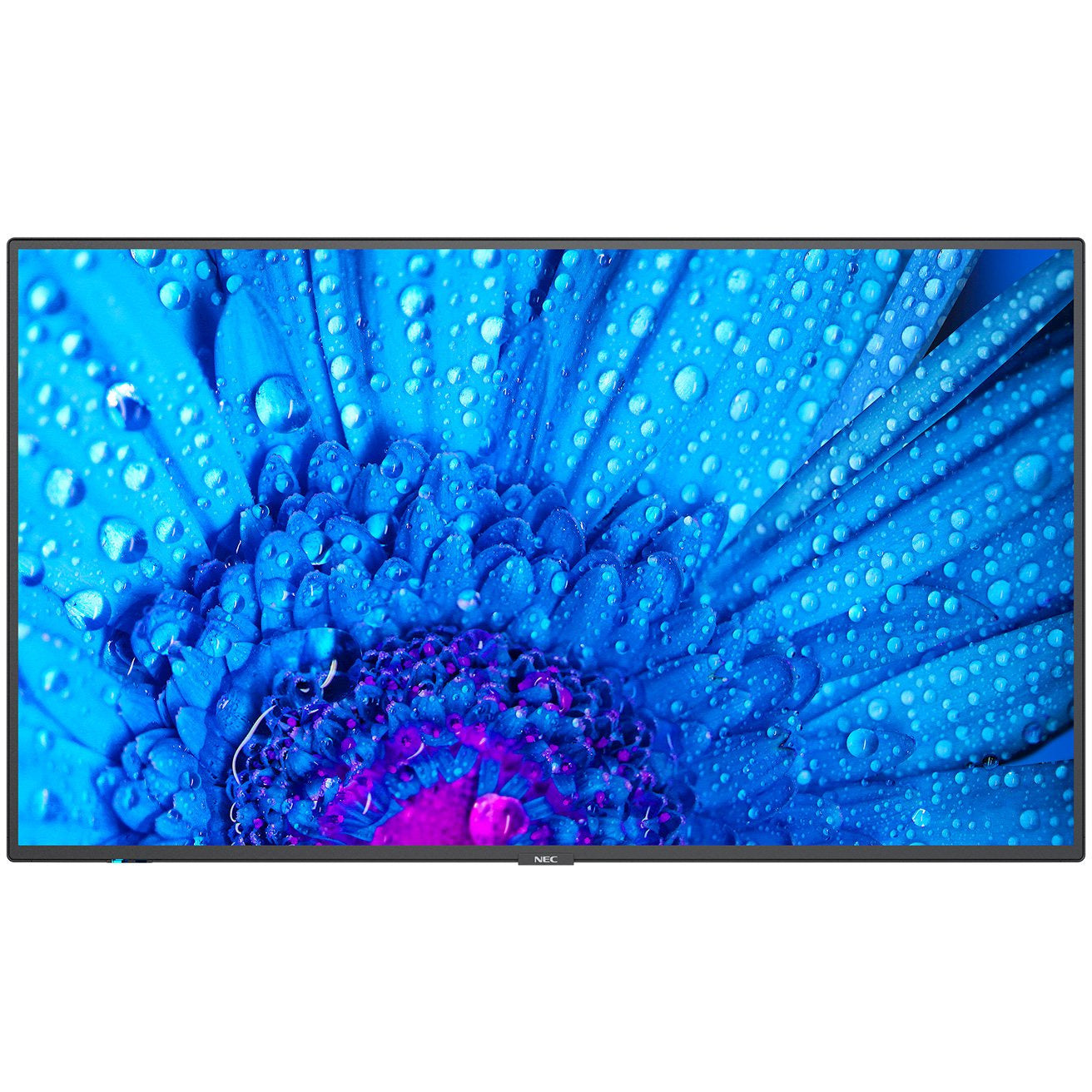

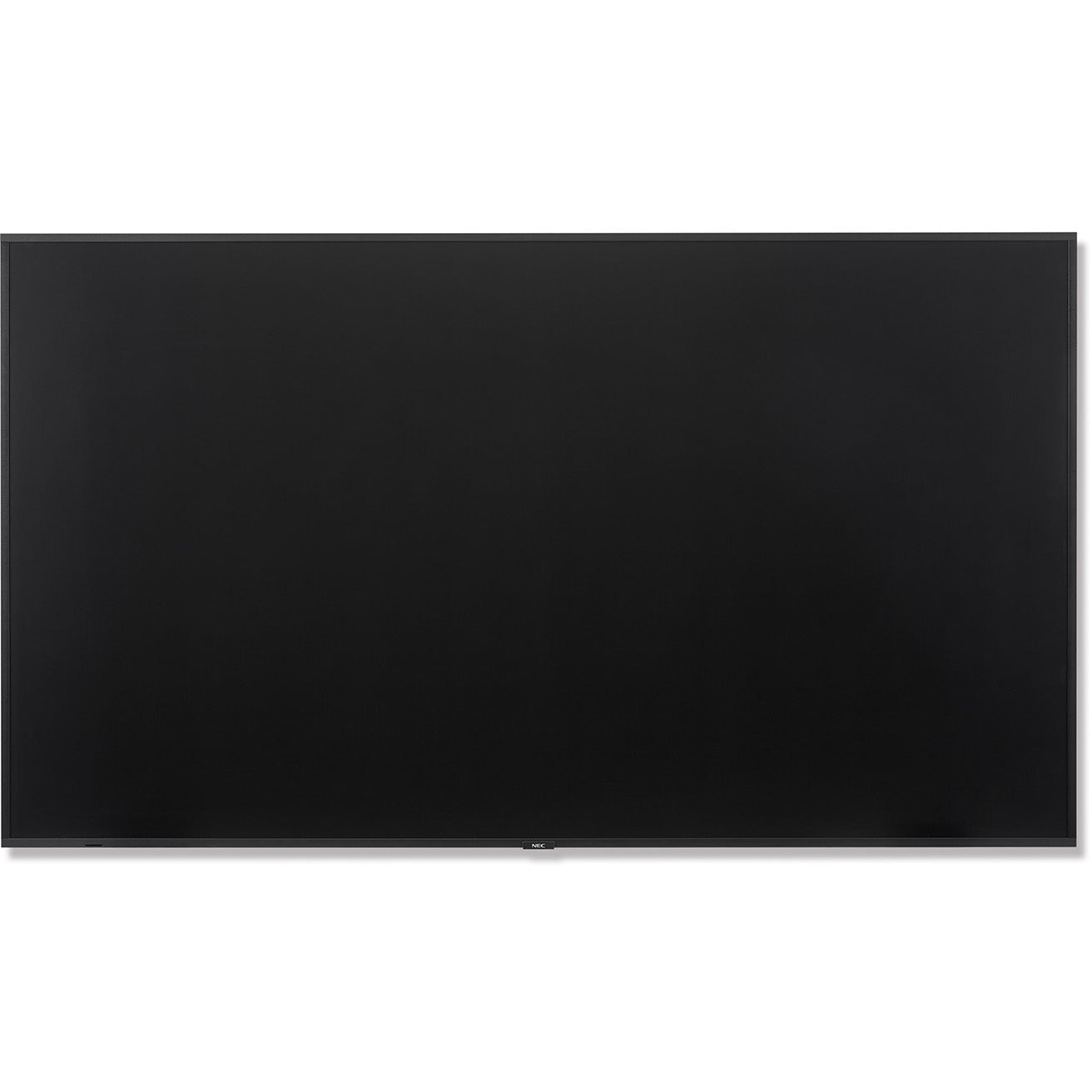

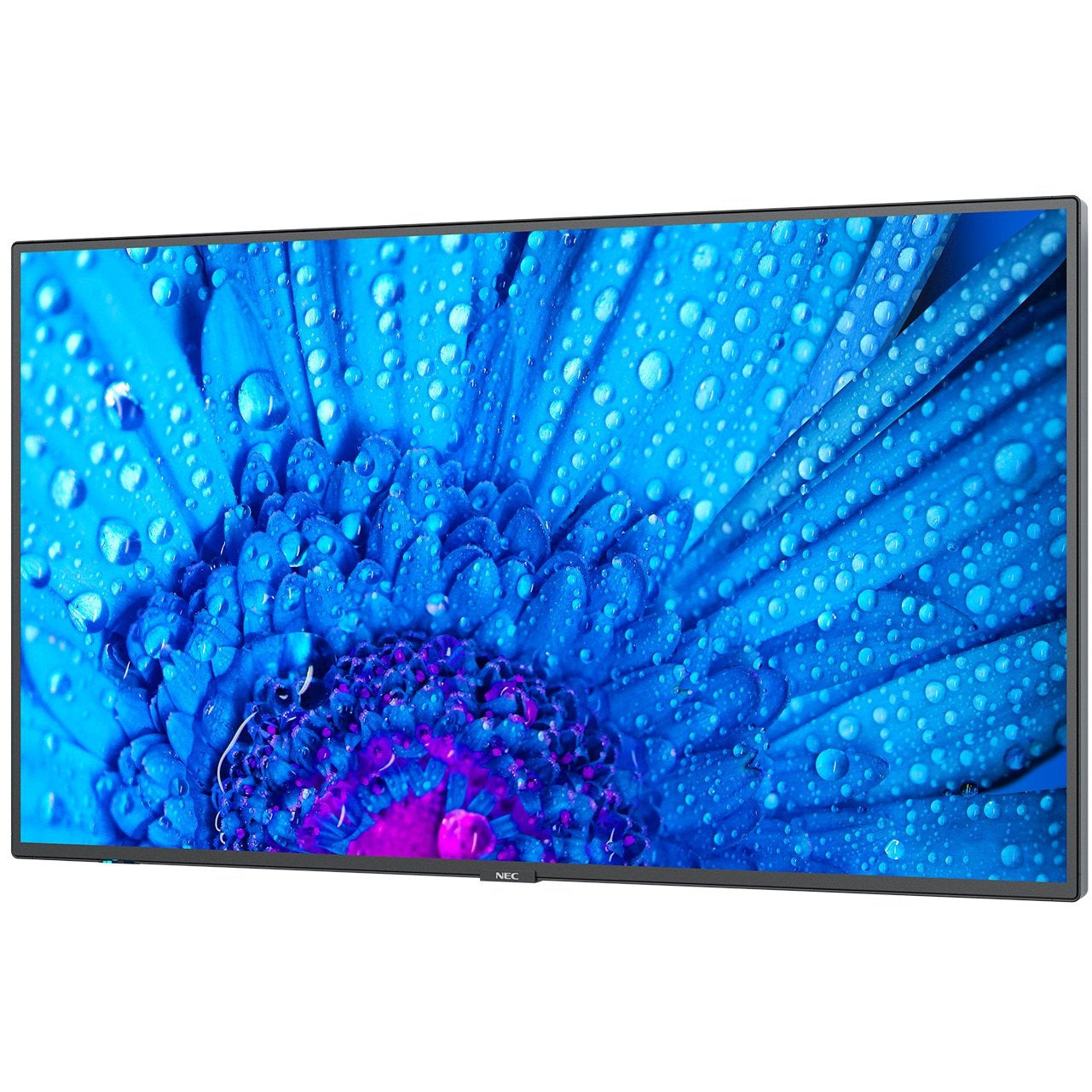

NEC MultiSync® M861 LCD 86" Message Large Format Display
NEC MultiSync® M861 LCD 86" Message Large Format Display
SKU:60005067
Regular price
£3,854.30 GBP
Regular price
Sale price
£3,854.30 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Benefits
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
DISPLAY
| Panel Technology | IPS with Direct LED backlights |
| Screen Size [inch/cm] | 86 / 217.4 |
| Aspect Ratio | 16:9 |
| Brightness [cd/m²] | 500 |
| Contrast Ratio | ≥ 8000:1 1 |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Colour Depth [bn] | 1.073 (10bit) |
| Colour Gamut | 68% of DCI |
| Response Time (typ.) [ms] | 8 |
| Panel Refresh Rate [Hz] | 60 |
| Haze Level [%] | Pro (28) |

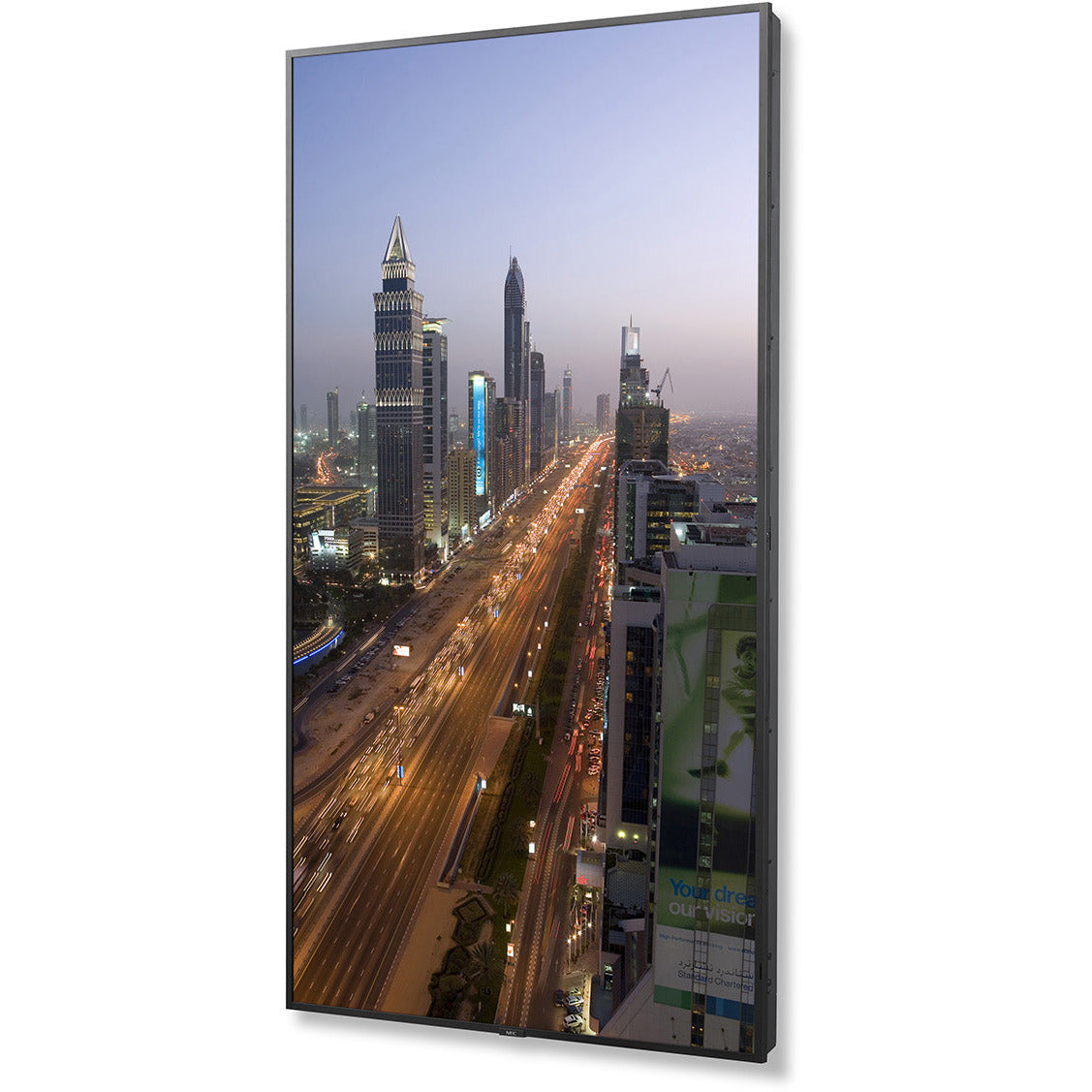

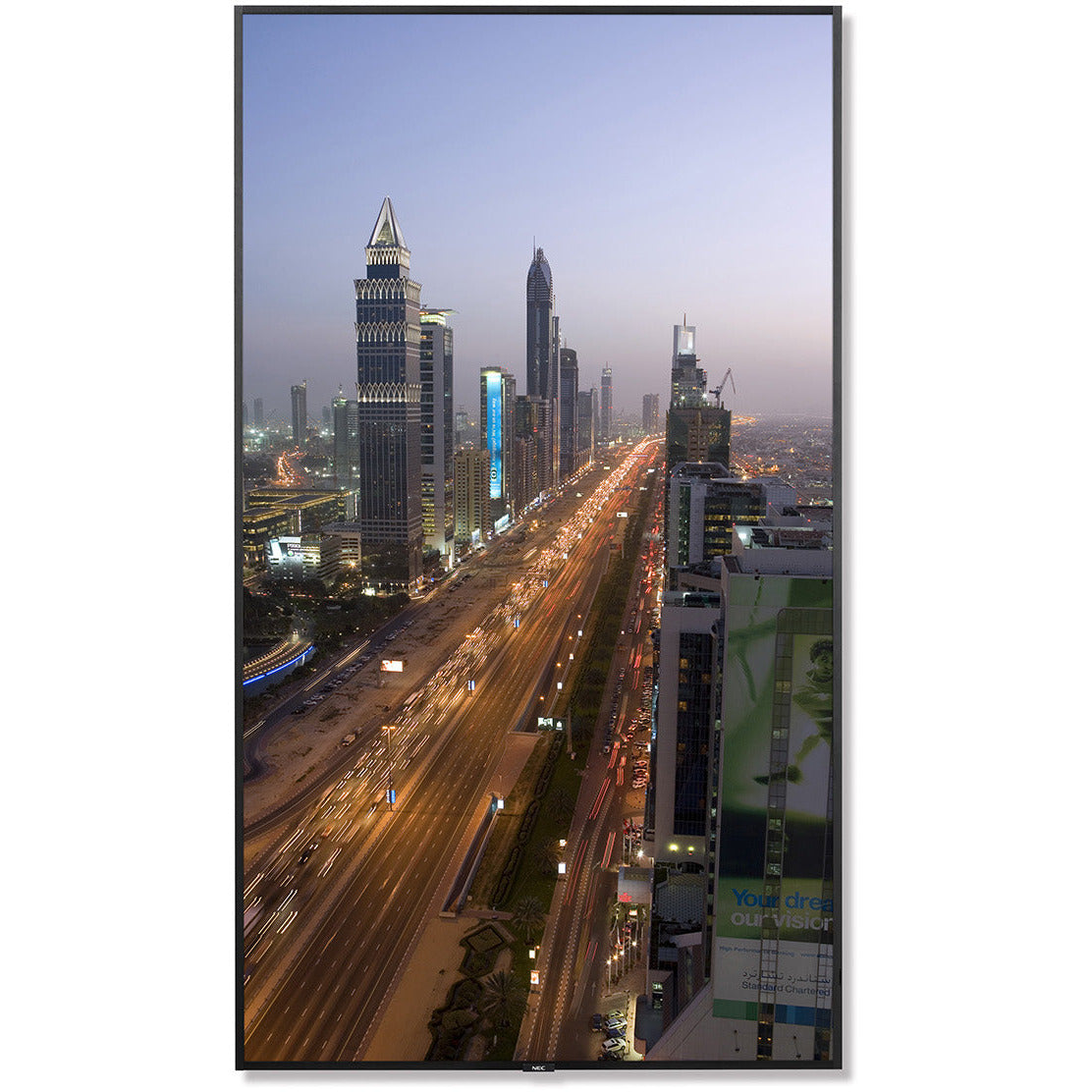

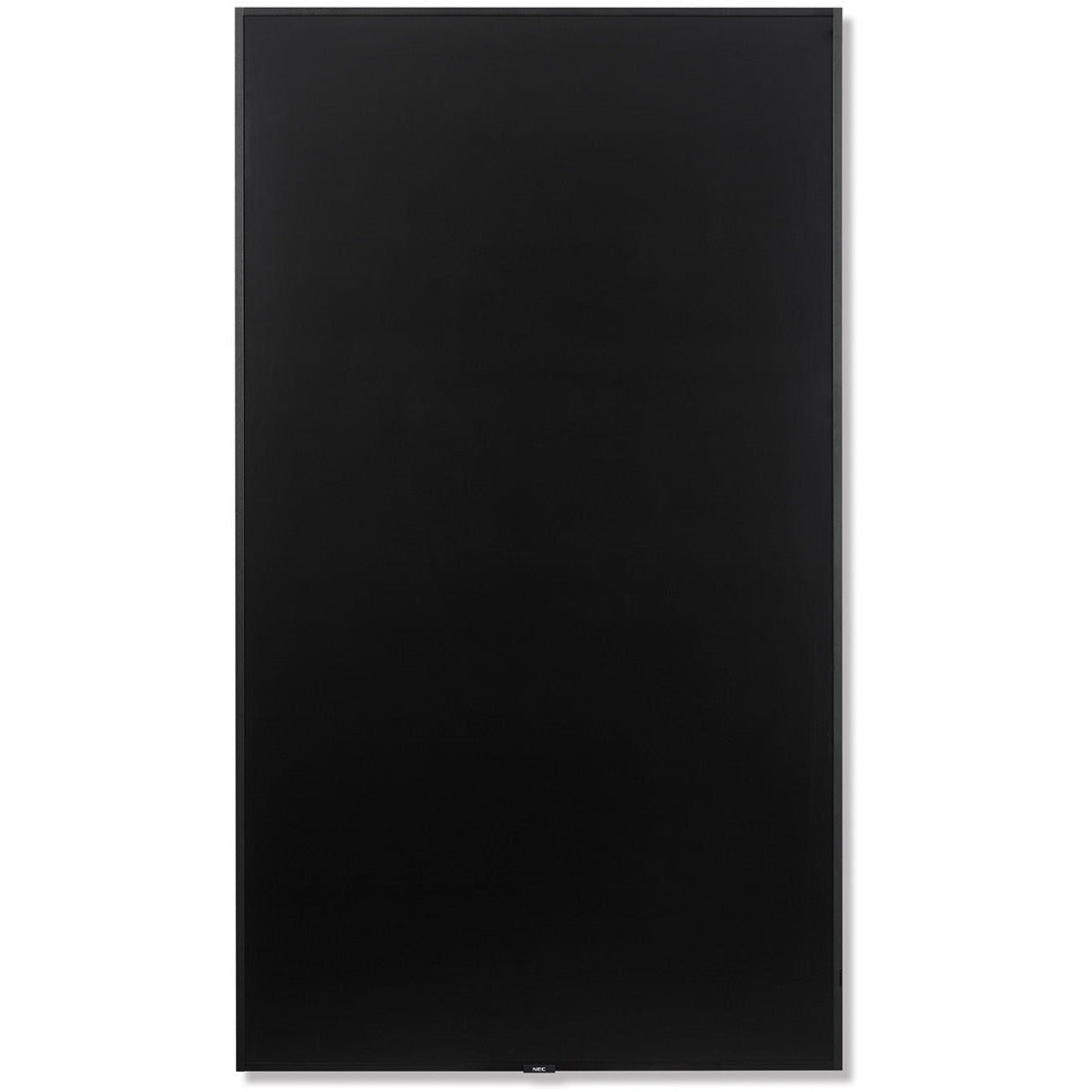

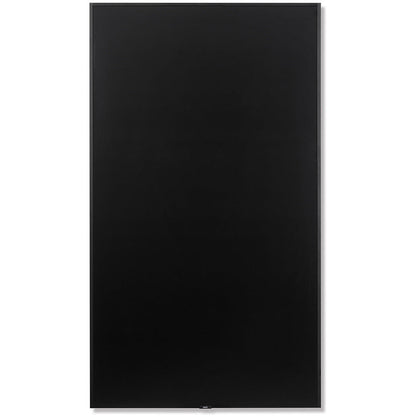

| Supported Orientation | Landscape; Portrait |
RESOLUTION
| Native Resolution |
3840 x 2160
|
| Supported Resolutions |
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160;7680 x 4320
|
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] | 15 - 135 |
| Vertical Frequency [Hz] | 23 - 76 |
CONNECTIVITY
| Input Video Digital | 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x DisplayPort; 2 x HDMI |
| Input Control | LAN 100Mbit; remote control wire (3,5mm jack); RS232 |
| Input Data | 1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream) |
| Output Video Digital | 1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC); DP (in) to HDMI (out) conversion |
| Output Audio Analogue | 1 x 3,5 mm jack |
| Output Control | 1 x LAN 100Mbit |
| Input Detect | Custom; First; Last |
| PiP/PbP | Dual-Split; Quad-Split; scalable picture size |
CALIBRATION
| Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point |
| Sensor Calibration (through USB) | PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) |
| Calibration with Software | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
| Calibration Software | NEC Display Wall Calibrator |
OPEN MODULAR INTELLIGENCE
| Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi Compute Module 4 |
SENSORS
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
ELECTRICAL
| Power Consumption Eco/max. [W] | 320 shipping |
| Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | +0 to +40 |
| Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 80 |
| Storage Temperature [°C] | -20 to 60 |
MECHANICAL

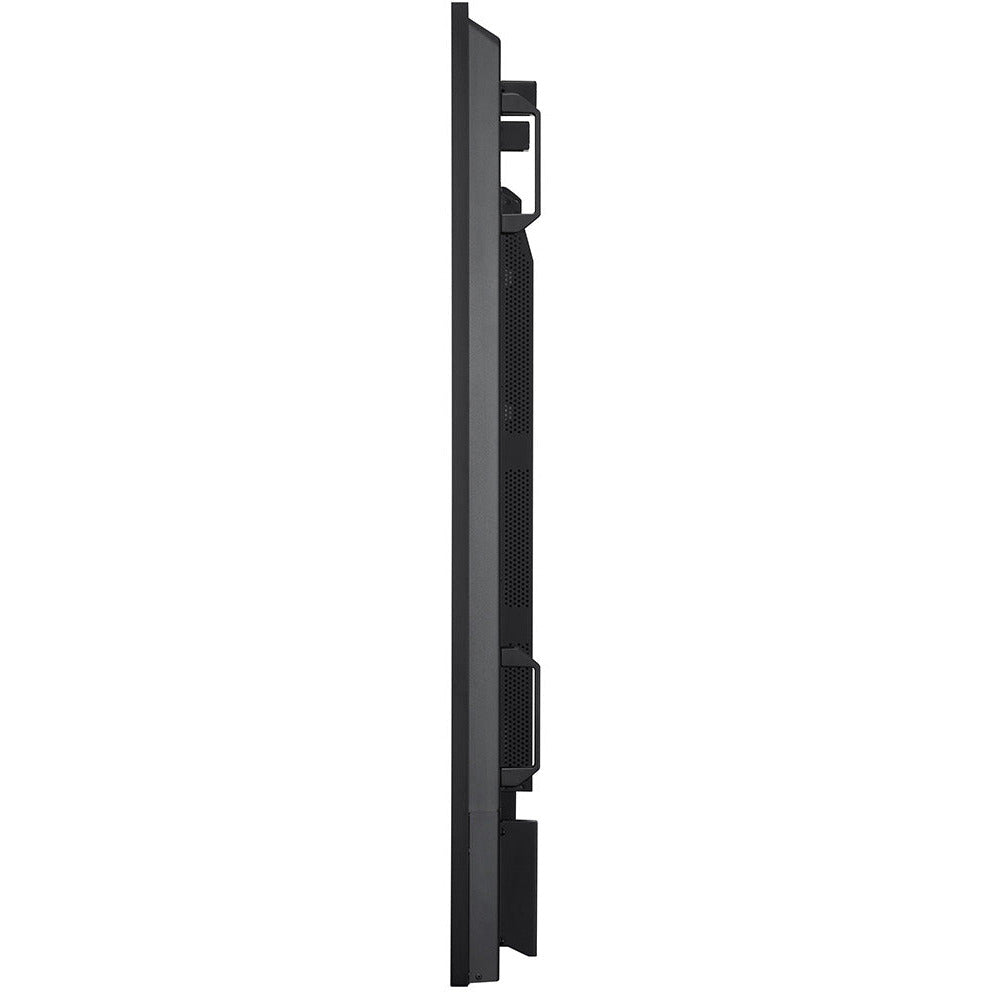

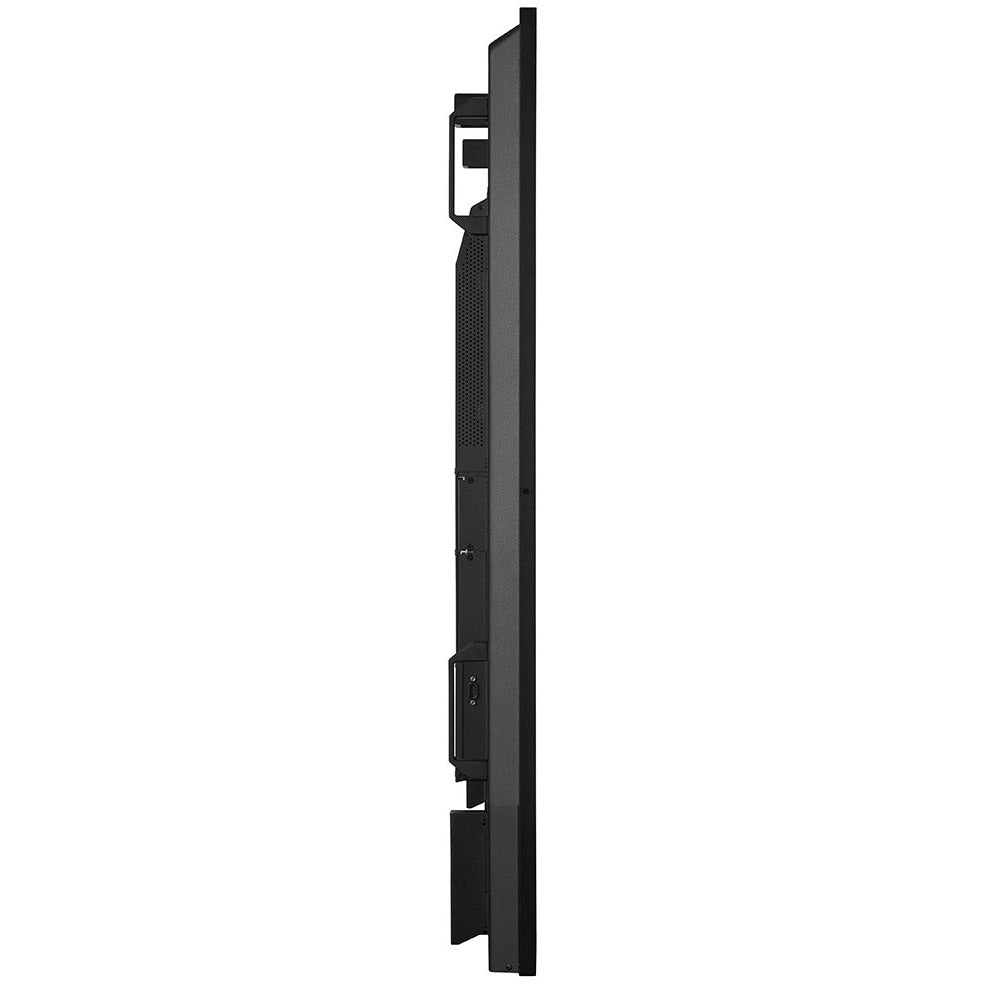

| Dimensions (W x H x D) [mm] | 1,927.6 x 1,099.1 x 83.2 |
| Weight [kg] | 47 |
| Bezel Width [mm] | 14.3 (left, right and top); 14.8 (bottom) |

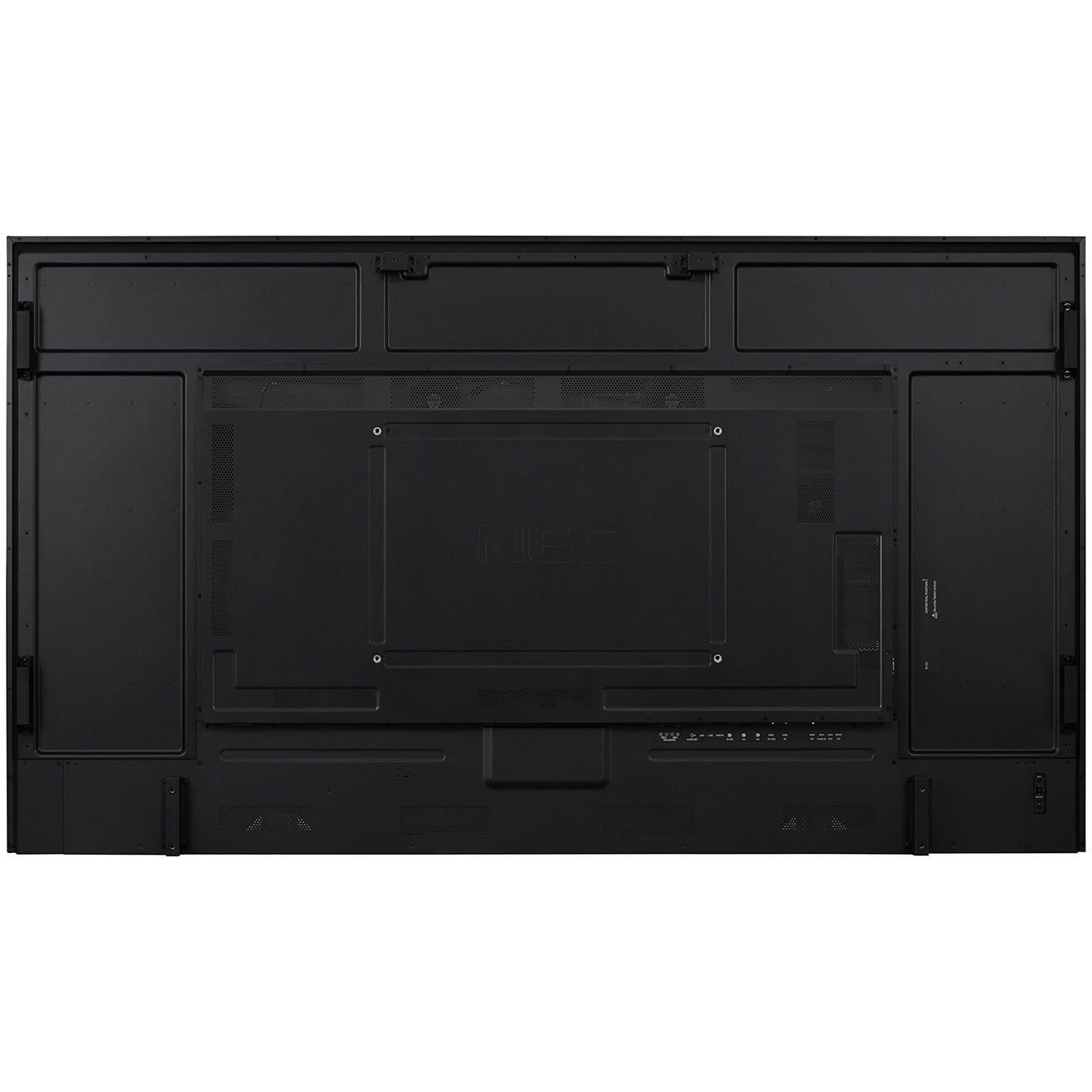

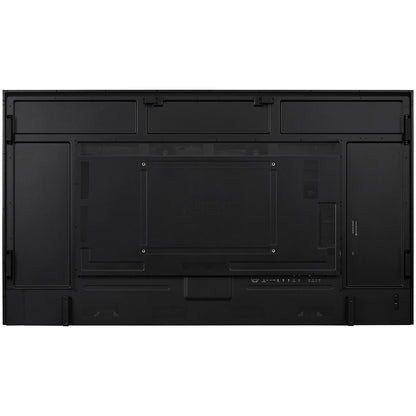

| VESA Mounting [mm] | 4 holes; 600 x 400 (FDMI); M8 |
| Ingress Protection | IP5x (front); IP2x (back) |
| Packaging Dimensions (W x H x D) [mm] | 2,090 x 1,225 x 225 |
| Packaging Weight [kg] | 65.1 |
| Colour Bezel | Pantone 426M (black) |
| Material | Metal |
AVAILABLE OPTIONS

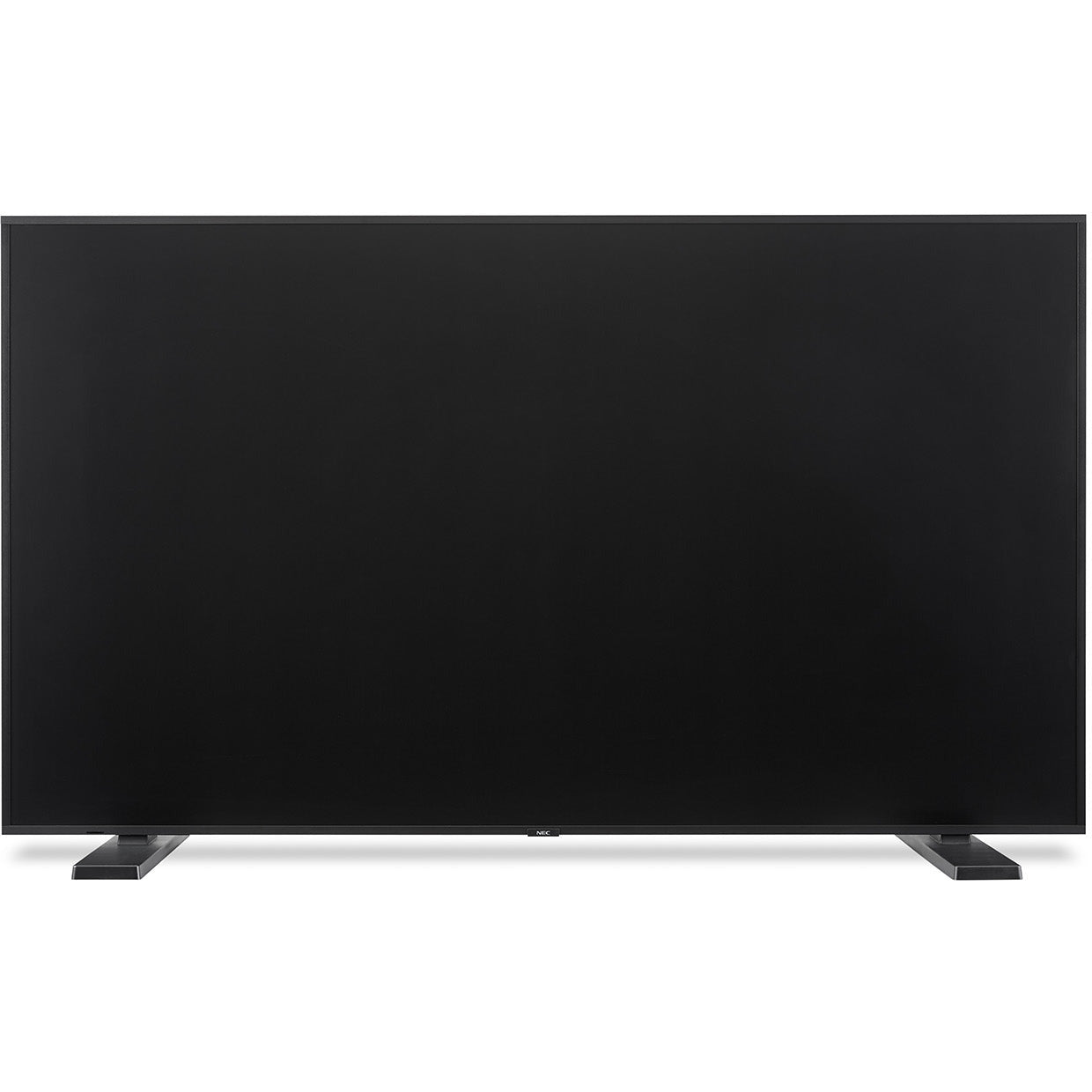

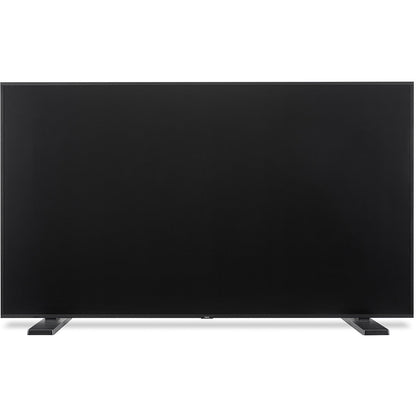

| Accessories | Feet (ST-801); Speaker (SP-RM3); Trolley (L20PNSR780MEU, PD02MHA, PD03MHA); Wall mount (L20PNWALL90EU, SF680P) |
GREEN FEATURES
| Energy Efficiency | Energy consumption: 193 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
ADDITIONAL FEATURES
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Audio | Integrated Audio Amplifier (for optional speakers up to 2 x 15 W); Integrated Speakers (10 W + 10 W) |
| Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
| Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2 |
| Operating Hours | 24/7 |
| External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
