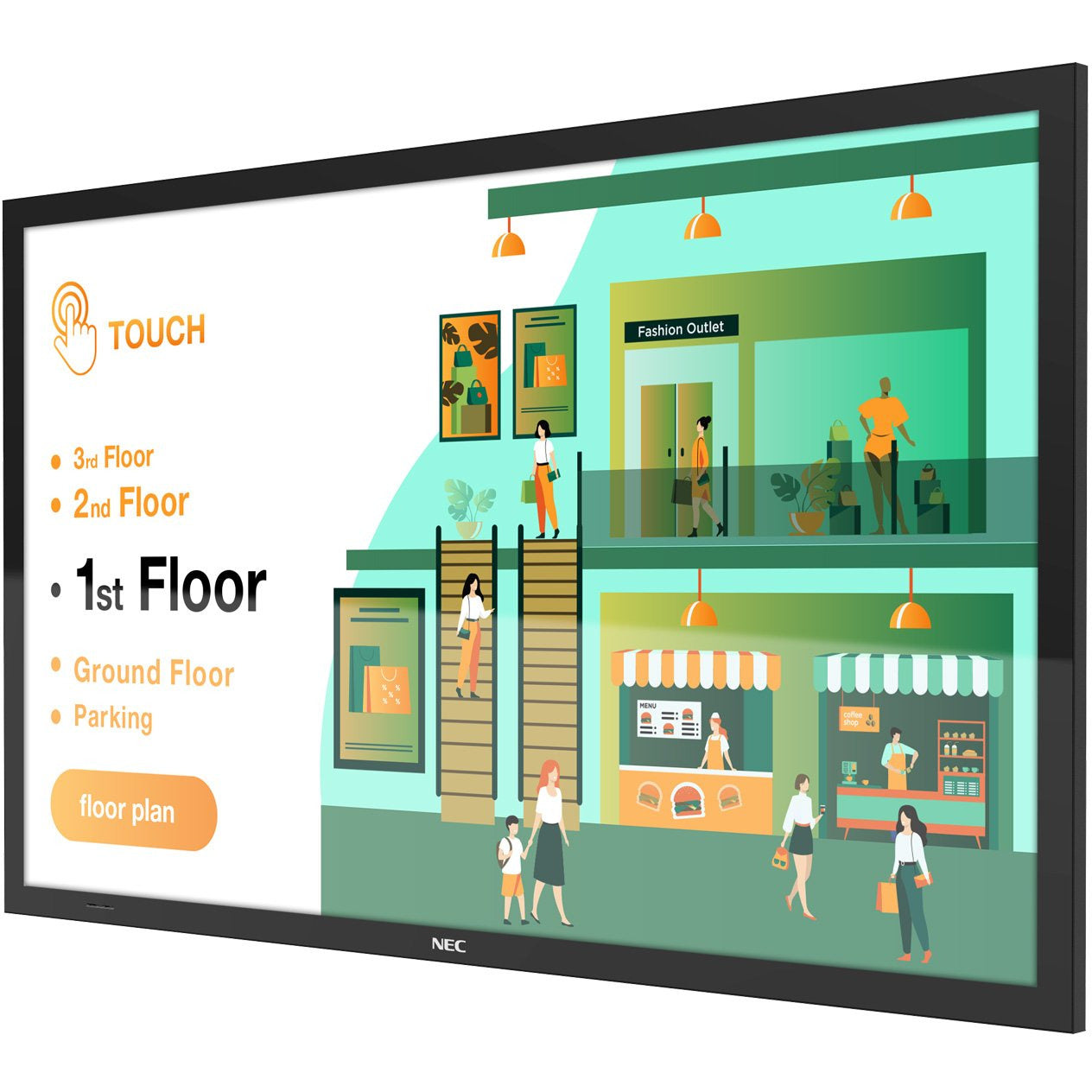

NEC MultiSync® M651 PCAP LCD 65" PCAP Touch Display

NEC MultiSync® M651 PCAP LCD 65" PCAP Touch Display

SKU:60005341

Regular price £5,326.56 GBP
Regular price Sale price £5,326.56 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Superior touch performance for demanding environments

Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With a modern, bezel-free styling, 24/7 operation and reduced reflections when ambient light is high, the NEC MultiSync® M series PCAP touch engages audiences and facilitates collaboration.

With the powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready to provide an exceptional interactive experience to your customers. Perfectly suited to the rigors of public usage, the robust glass surface is resistant to scratches whilst its anti-glare property makes the M series PCAP touch models suitable for use even in areas of high ambient light.

Benefits

  • Modern and easy to clean design – edge-to-edge allowing for unobtrusive integration into any application and environment.
  • Exceptional touch performance – with up to 20 touch points the PCAP technology offers excellent touch responsiveness for both finger and pen usage
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

DISPLAY

Panel Technology IPS with Direct LED backlights
Screen Size [inch/cm] 65 / 163.9
Aspect Ratio 16:9
Brightness (without glass) [cd/m²] 500
Contrast Ratio (default) > 8000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.076 (10bit)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Supported Orientation Face Up 1; Landscape; Portrait
TOUCH
Touch Technology PCAP
Number of Touches Real multi-touch up to 20 touches
Touch Method Conductive Passive Stylus; Finger
Supported Operating System Android; Linux; Raspberry Pi; Windows
Data Interface USB-HID
Accuracy [mm] +/- 1.5
Palm Rejection no
Windows Ink no
GLASS
Thickness [mm] 3.5
Light Transmission [%] 85 (+/- 5 %)
Haze Level [%] 5 ~ 10
Hardness [H] 6
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1900 x 1200;1920 x 1080;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 26 - 91.1
Vertical Frequency [Hz] 23 - 86
CONNECTIVITY
Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue 1 x 3,5 mm jack
Input Detect Custom; First; Last
OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot RPi Compute Module 4
SENSORS
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
ELECTRICAL
Power Consumption Eco/max. [W] 120 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60
MECHANICAL
Dimensions (W x H x D) [mm] 1,493.3 x 870.8 x 69.4
Weight [kg] 51.1
Bezel Width [mm] Edge-to-edge flush design (no bezel)
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M8
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] Box 1: 1,736 x 1,033 x 280
Packaging Weight [kg] Box 1: 64
Colour Bezel Pantone 426M (black)
MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
AVAILABLE OPTIONS
Accessories Feet (ST-65M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2; SP-ASCM-2); Speaker (SP-RM3a); Trolley (PD02MHA, PD03MHA, L20PNSR780MEU); Wall mount (L20PNWALL90EU, PDW T XL-2)
GREEN FEATURES
Energy Efficiency Energy consumption: 116 kWh/1000 h; LED backlight
Ecological Standards EnergyStar 8.0
ADDITIONAL FEATURES
Special Characteristics DICOM Simulation; HDMI ARC; Powered USB Port (10 W)
Safety and Ergonomics CE; EAC; RoHS
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual; USB cable
Warranty 3 years warranty incl. backlight; additional services available
Operating Hours 24/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
