NEC

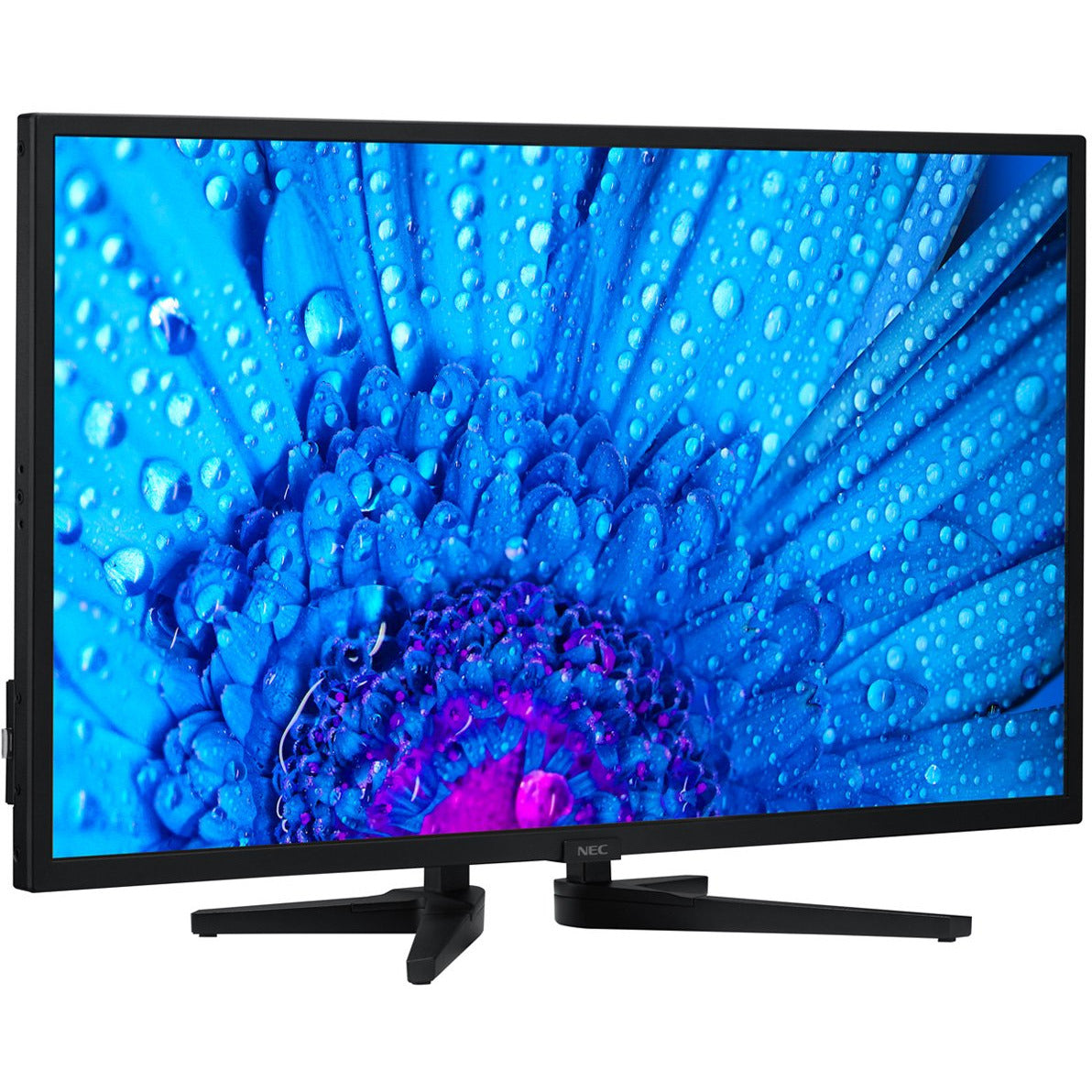

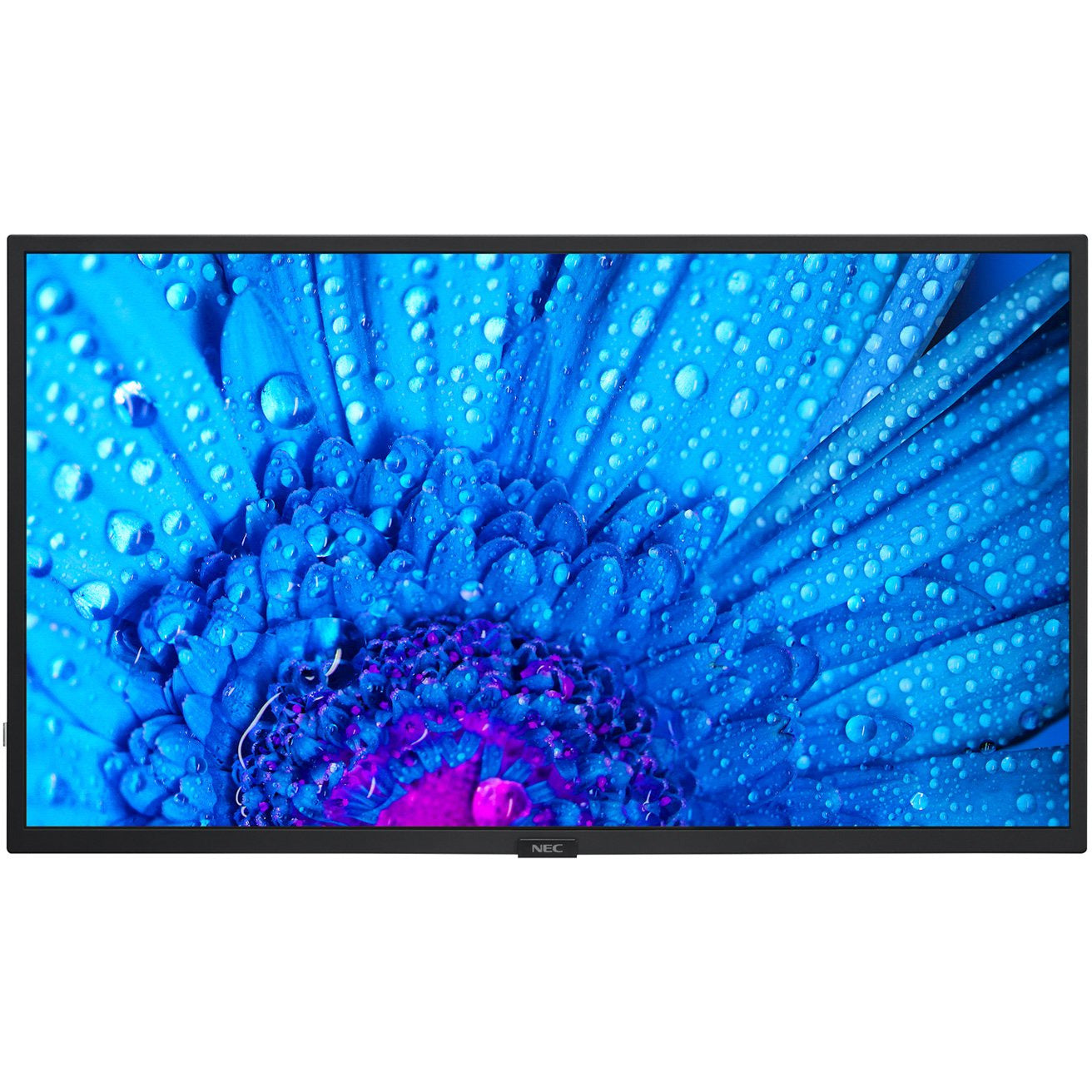

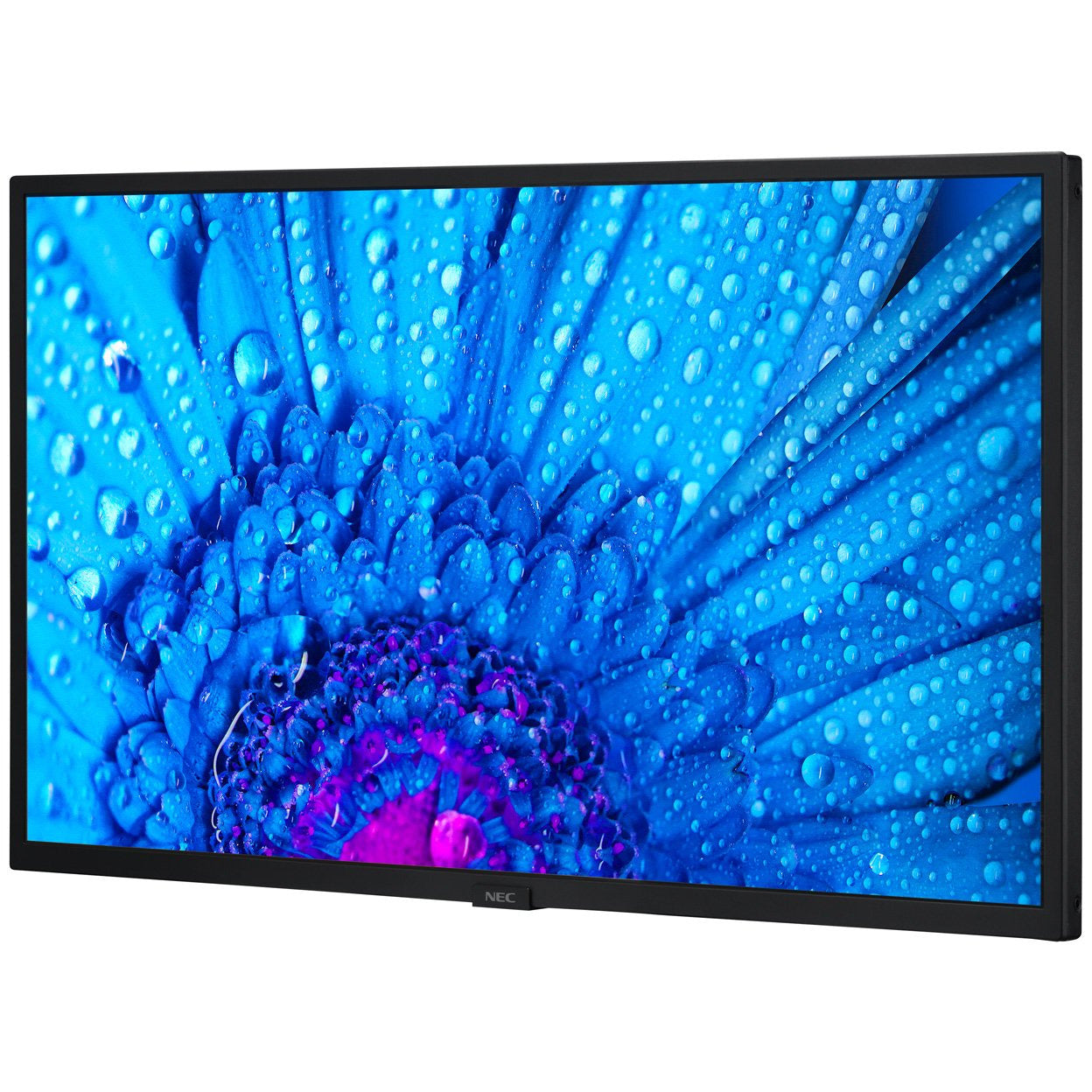

NEC MultiSync® M321 LCD 32" Message Large Format Display

NEC MultiSync® M321 LCD 32" Message Large Format Display

SKU:60005288

Regular price £530.46 GBP
Regular price Sale price £530.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Intuitive professional content delivery

For economical signage in 24/7 commercial environments, the 32” MultiSync® M321 delivers all the professional performance and features you need, whilst minimising the cost of ownership. With a 450 cd/m2 brightness output and anti-glare panel, the viewer enjoys excellent visual quality unhindered by reflections, with a slim, aesthetic design for unobtrusive integration.

Featuring multiple industry standard digital and analogue signal inputs, the M321 is future-proof for flexible integration. It also features full external control support through both RS-232 or LAN connectivity enabling operators to achieve time and cost savings when managing an estate of displays.

The full metal chassis, high end componentry and integrated schedule function affords peace of mind for extended runtimes, ideal for retail and transportation applications.

Benefits

  • Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
  • Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
  • Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.

DISPLAY

Panel Technology IPS with Direct LED backlights
Screen Size [inch/cm] 32 / 80
Aspect Ratio 16:9
Brightness [cd/m²] 450
Contrast Ratio (typ.) 1100:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 16.7 (8bit)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Pro (28)
Supported Orientation Face Up 1; Landscape; Portrait

RESOLUTION
Native Resolution
1920 x 1080
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 26 - 91.1
Vertical Frequency [Hz] 23 - 86

CONNECTIVITY
Input Video Analogue 1 x VGA
Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue 1 x 3,5 mm jack
Input Detect Custom; First; Last

SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable

ELECTRICAL
Power Consumption Eco/max. [W] 40 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz; internal

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60

MECHANICAL
Dimensions (W x H x D) [mm] 726.5 x 425.4 x 66.5
Weight [kg] 6.3
Bezel Width [mm] 11.8 (top); 11.9 (left and right); 17.2 (bottom)
VESA Mounting [mm] 100 x 100 (FDMI); 200 x 200 (FDMI); 4 holes; M4
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 870 x 527 x 160
Packaging Weight [kg] 9.8
Colour Bezel Pantone 426M (black)
Material Metal

MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s

AVAILABLE OPTIONS
Accessories Feet (ST-32M); Presence Sensor (KT-RC3); Wall mount (PDW T XS)
External Computing MPi4 Box; OPS/SDM standalone adapter to integrate any OPS/SDM computing or interface module

GREEN FEATURES
Energy Efficiency Energy consumption: 41 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0

ADDITIONAL FEATURES
Special Characteristics HDMI ARC; Powered USB Port (10 W); Removable Logo
Safety and Ergonomics CE; EAC; RoHS
Pixel Failure Class ISO 9241-307, Class 2
Audio Integrated Speakers (5 W + 5 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours 24/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification
Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB
