NEC

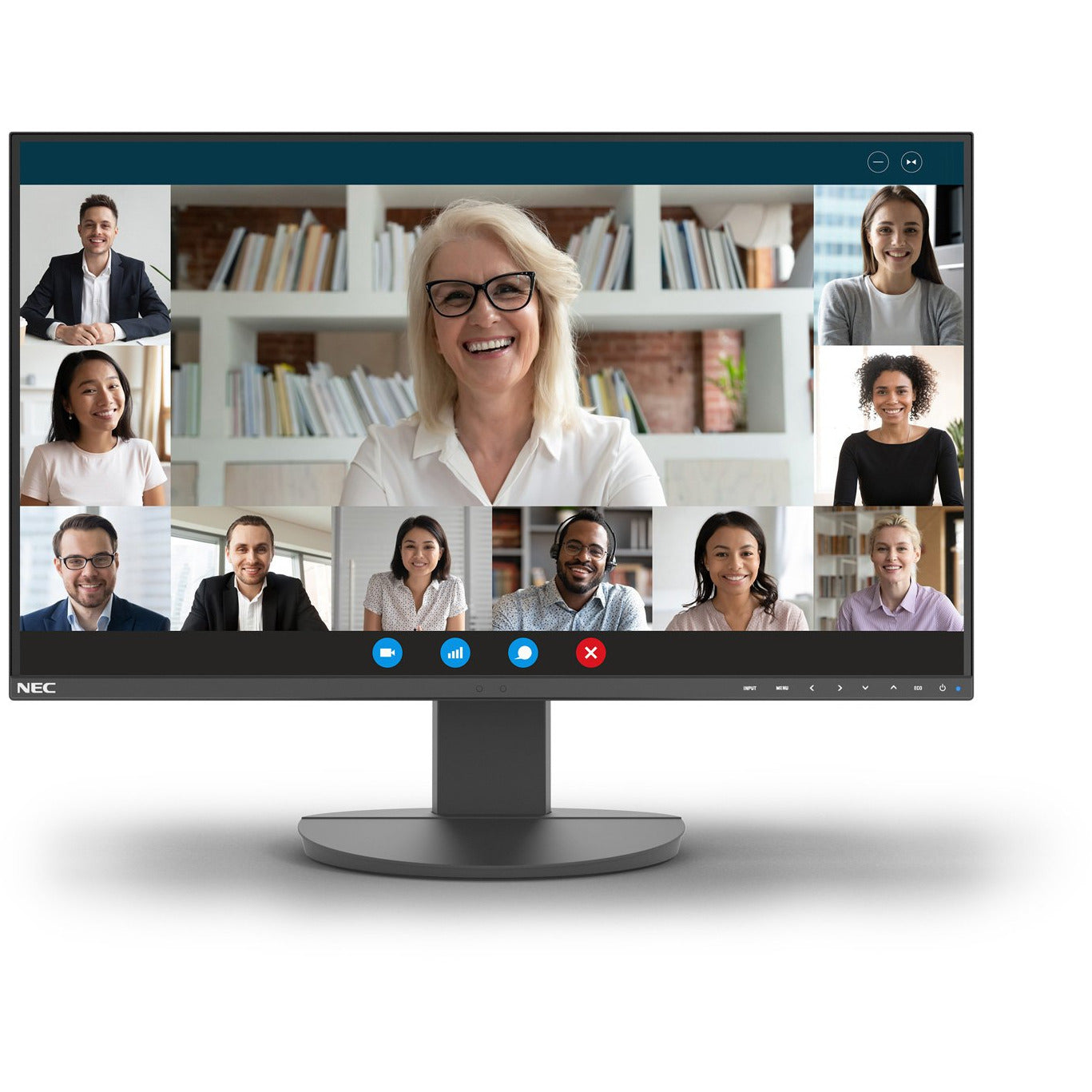

NEC MultiSync® EA242F LCD 23.8" Enterprise Display

NEC MultiSync® EA242F LCD 23.8" Enterprise Display

SKU:EA242F BK

Regular price £383.15 GBP
Regular price Sale price £383.15 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Color

Powering workspace communications

Powering your PC/notebook and all your devices through a single cable, the MultiSync® EA242F is your workspace hub; no docking station required, the 65W USB-C connection means an efficient, clutter-free workstation from which to manage your communications. Easily increase your display area using DisplayPort-out to daisy-chain multiple displays, no additional cabling required.

User comfort is fundamental with full height adjustment, tilt, pivot and swivel supporting customised personal setup, whilst built-in low blue light technologies guard against eye fatigue without compromising true-to-life colour performance. Available in black or white, the 24” EA242F complements office interior design and ergonomics.

The connectivity advantage continues beyond USB Type-C with DisplayPort, HDMI, VGA and USB A for fully future-proof flexibility supporting new open office standards in hot desking and ‘bring your own device.’

Benefits

  • In-demand display size – the popular 23.8” display with Full HD resolution is the perfect size for busy office workspaces.
  • Future-proof flexibility – wide connectivity provides high-level flexibility with DP, HDMI, USB Type C, USB A and audio output.
  • Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable
  • Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed
  • Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.

DISPLAY

Panel Technology IPS TFT with W-LED backlight
Screen Size [inch/cm] 24 / 60.47
Screen Aspect Ratio 16:9
Colour Gamuts 101.6 % sRGB; 75.3% AdobeRGB, 72% NTSC
Pixel Pitch [mm] 0.275
Brightness (typ.) [cd/m²] 250
Contrast Ratio (typ.) 1000:1 (5000:1 dynamic contrast ratio)
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 5 (grey-to-grey)
Colours [Mio.] 16.78 (6-bit per colour)

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 83
Vertical Frequency [Hz] 50 - 75

RESOLUTION
Optimum Resolution
1920 x 1080 at 60 Hz
Supported
1024 x 768;1280 x 1024;1280 x 720;1280 x 960;1440 x 900;1680 x 1050;1920 x 1080;640 x 480;720 x 400;720 x 480;720 x 576;800 x 600

CONNECTIVITY
Digital 1 x DisplayPort; 1 x DisplayPort out; 1 x HDMI; 1 x USB Type C; USB ver. 3.1 (3 down / 1 up)
Analog 1 x D-sub 15 pin

ELECTRICAL
Power Consumption on Mode [W] 15 (Eco Mode 2); 21 (typ.)
Power Savings Mode [W] 0.3
Power Supply 0.9 A/0.5 A; 100-240 V; internal power supply

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 85
Storage Temperature [°C] -10 to 60

ERGONOMICS

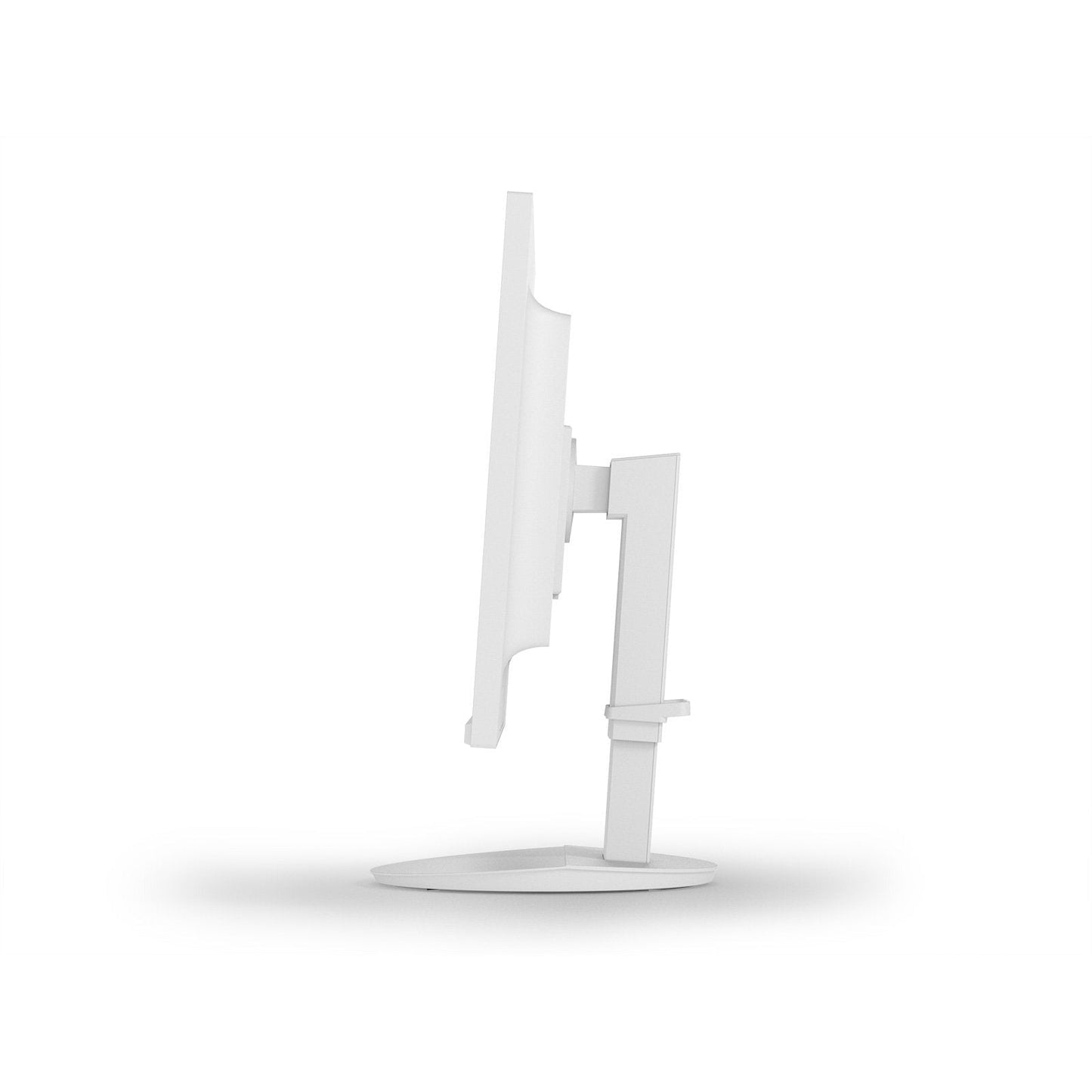

Height adjustable stand [mm] 150 (Landscape mode)
Screen Tilt [°] -5 to 35
Screen Swivel [°] -170 to 170
Screen Rotate [°] 0 to 90 (landscape to portrait mode)

MECHANICAL
Bezel Width [mm] 0.8 (left/right/top); 15.8 (bottom)
Dimensions (W x H x D) [mm] 319.1 x 555.6 - 615.4 x 250 (Portrait mode); 537.7 x 336.6 - 486.6 x 250 (Landscape mode)
Weight [kg] With stand: 7
VESA Mounting [mm] 100 x 100 (4 points)

ADDITIONAL FEATURES
Colour Versions Black Front Bezel, Black Back Cabinet
Cable Management yes
Kensington security slot yes
Plug and Play DDC2B/2Bi; VESA DDC/CI; VESA DDC2Bi
Audio Integrated Speakers (1 W + 1 W)
Adjust Functions Advanced NTAA (Advanced Non-Touch-Auto-Adjustment)
Shipping Content Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; USB Cable; USB-C Cable
Safety and Ergonomics CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE
Warranty 3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension

GREEN FEATURES
Energy Efficiency Ambient light sensor; Energy consumption: 13 kWh/1000 h; Energy efficiency class: D; Human sensor
Ecological Standards ErP compliant; RoHS compliant; WEEE
