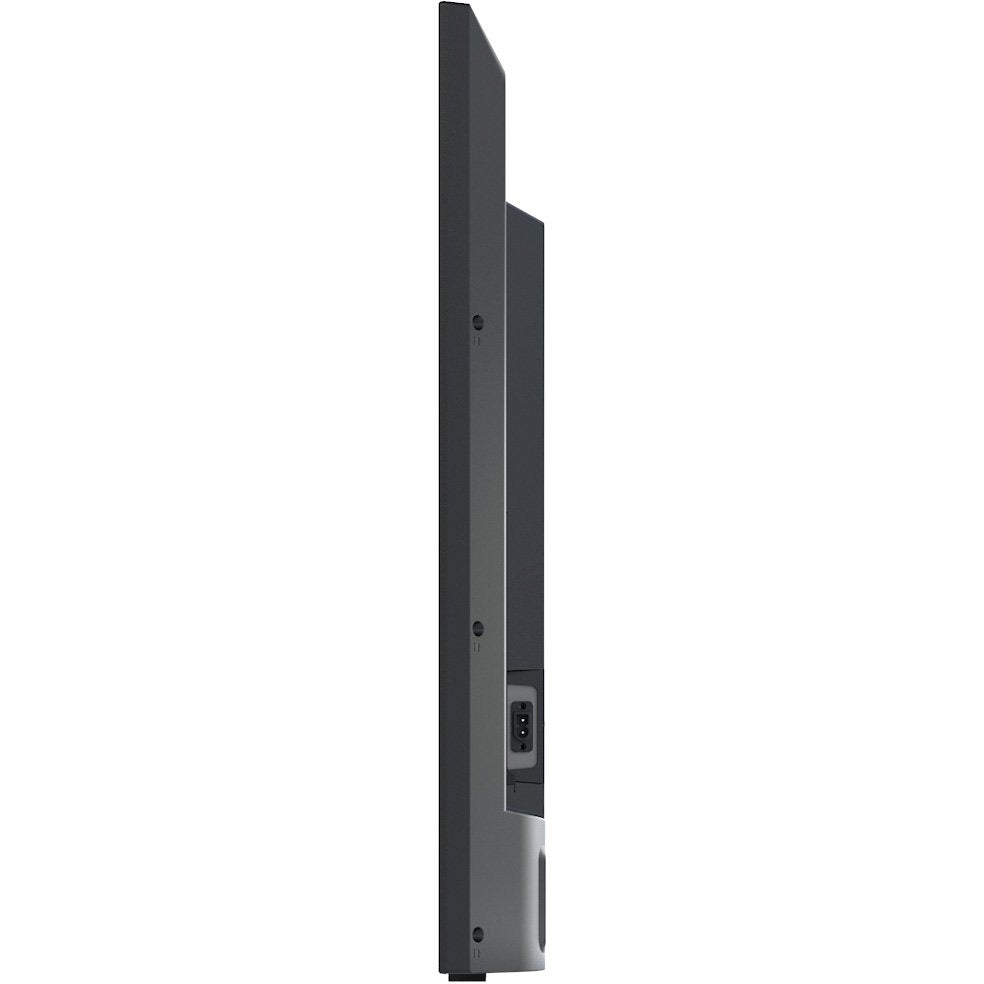

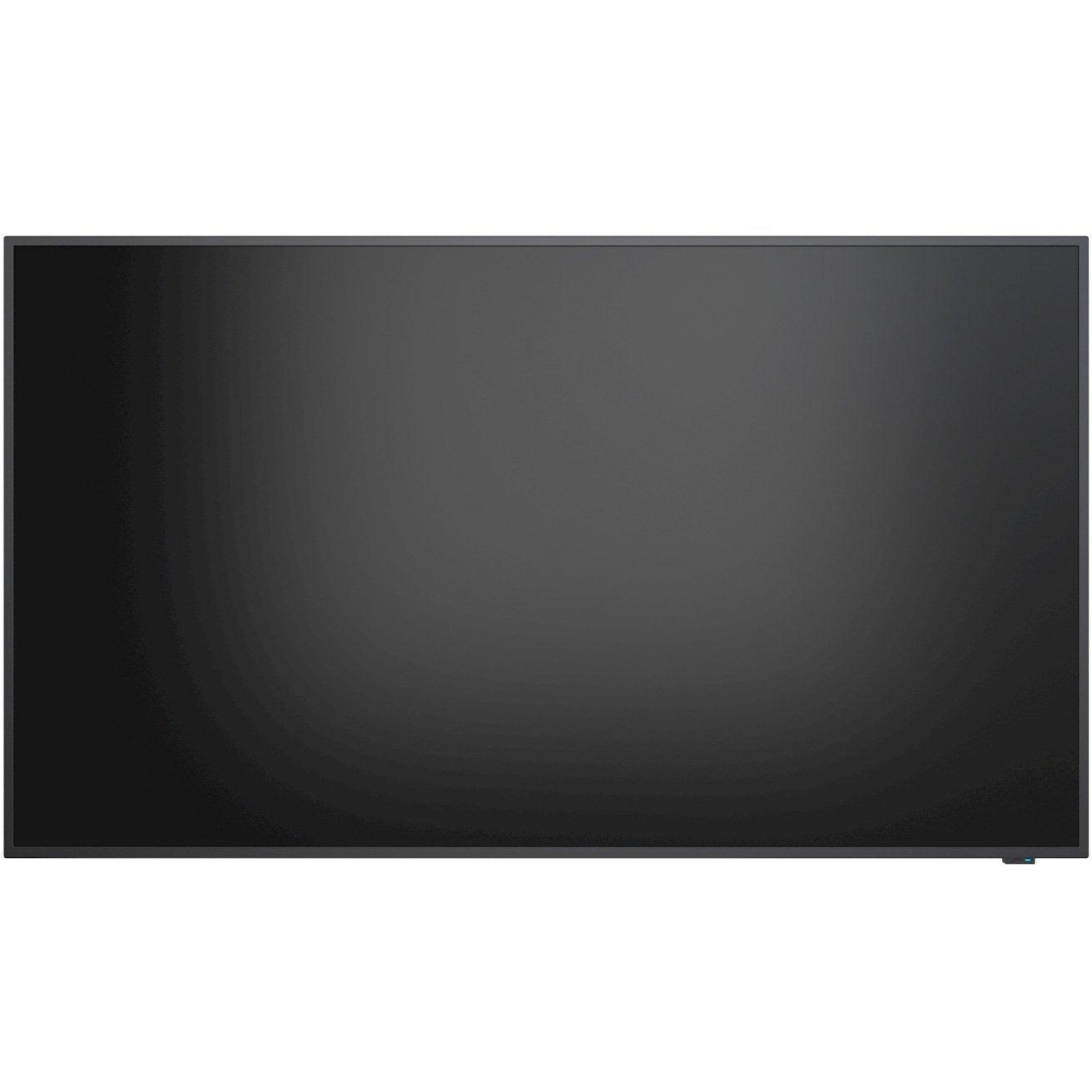

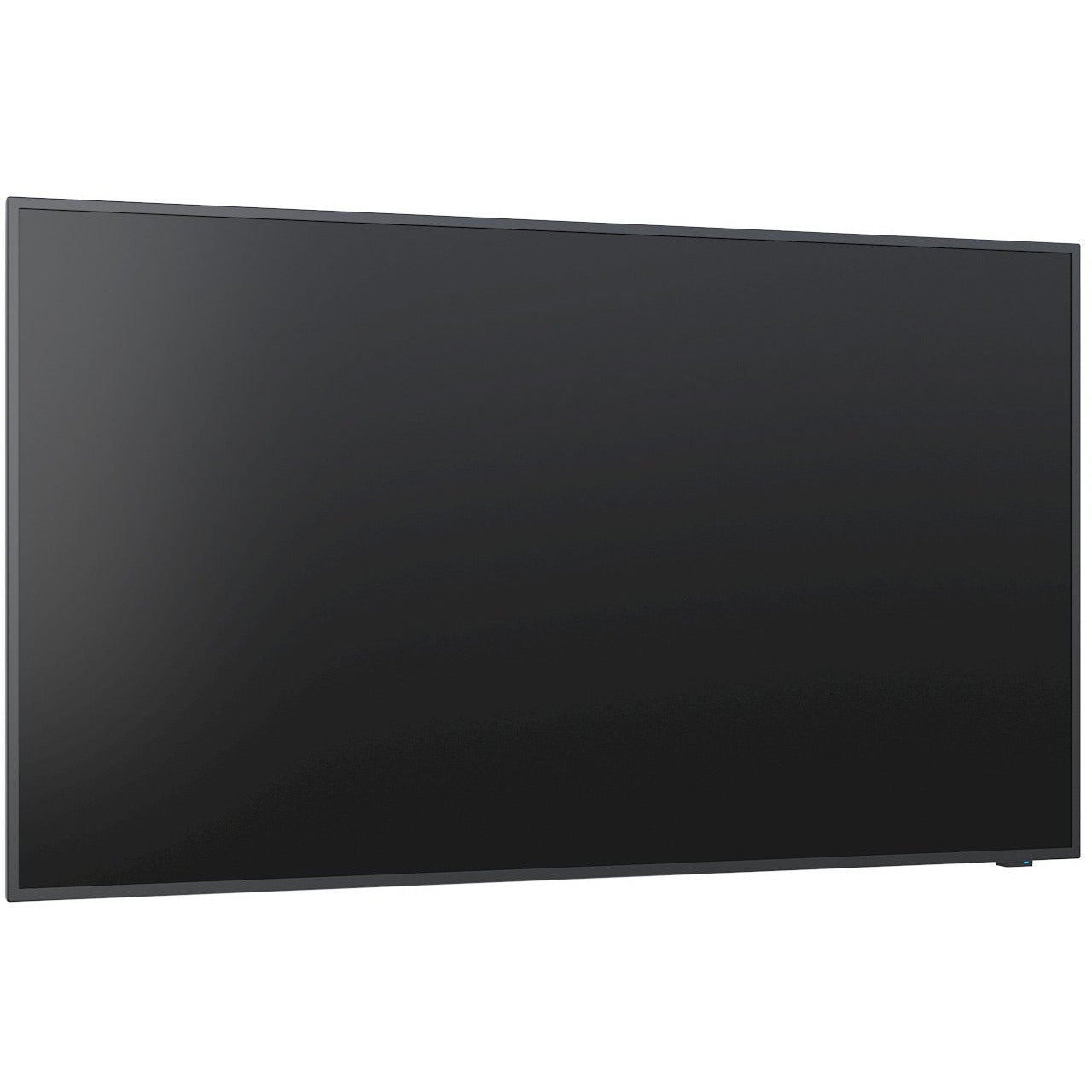

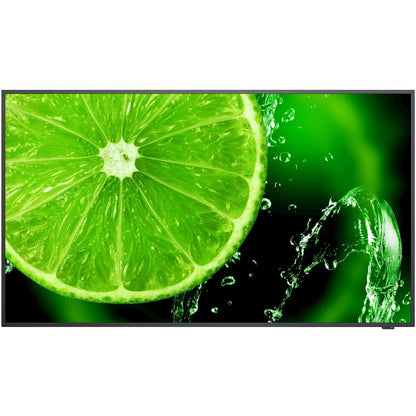

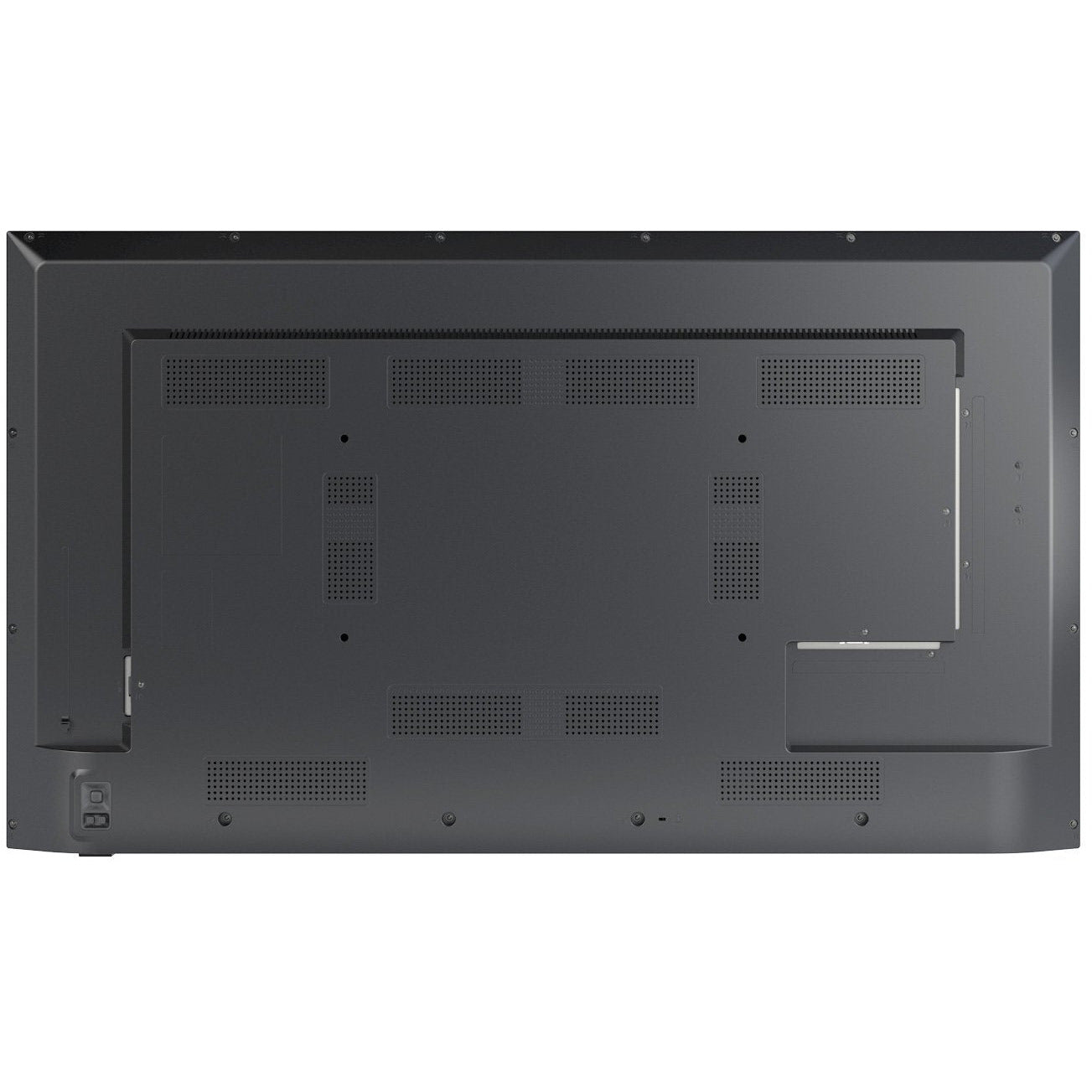

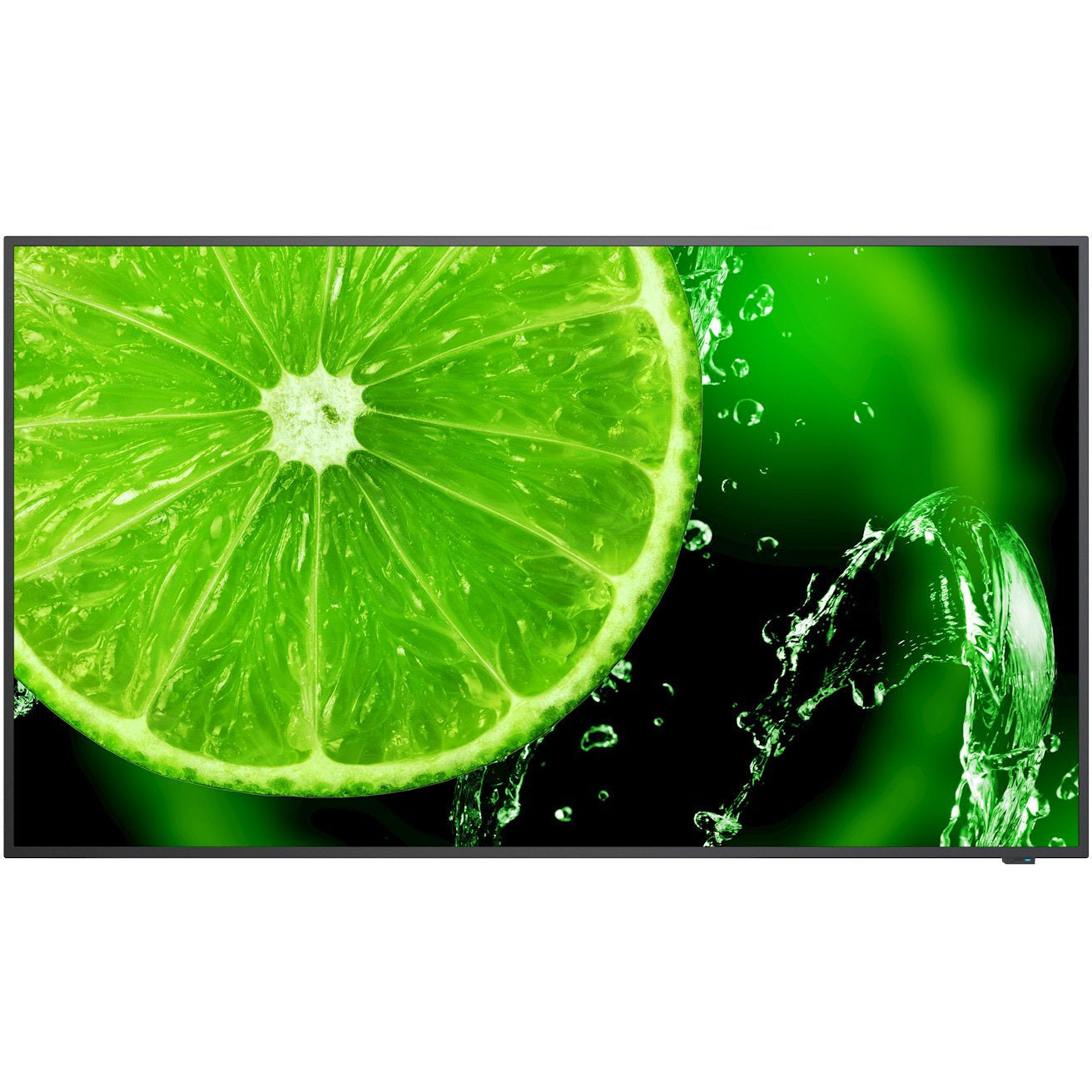

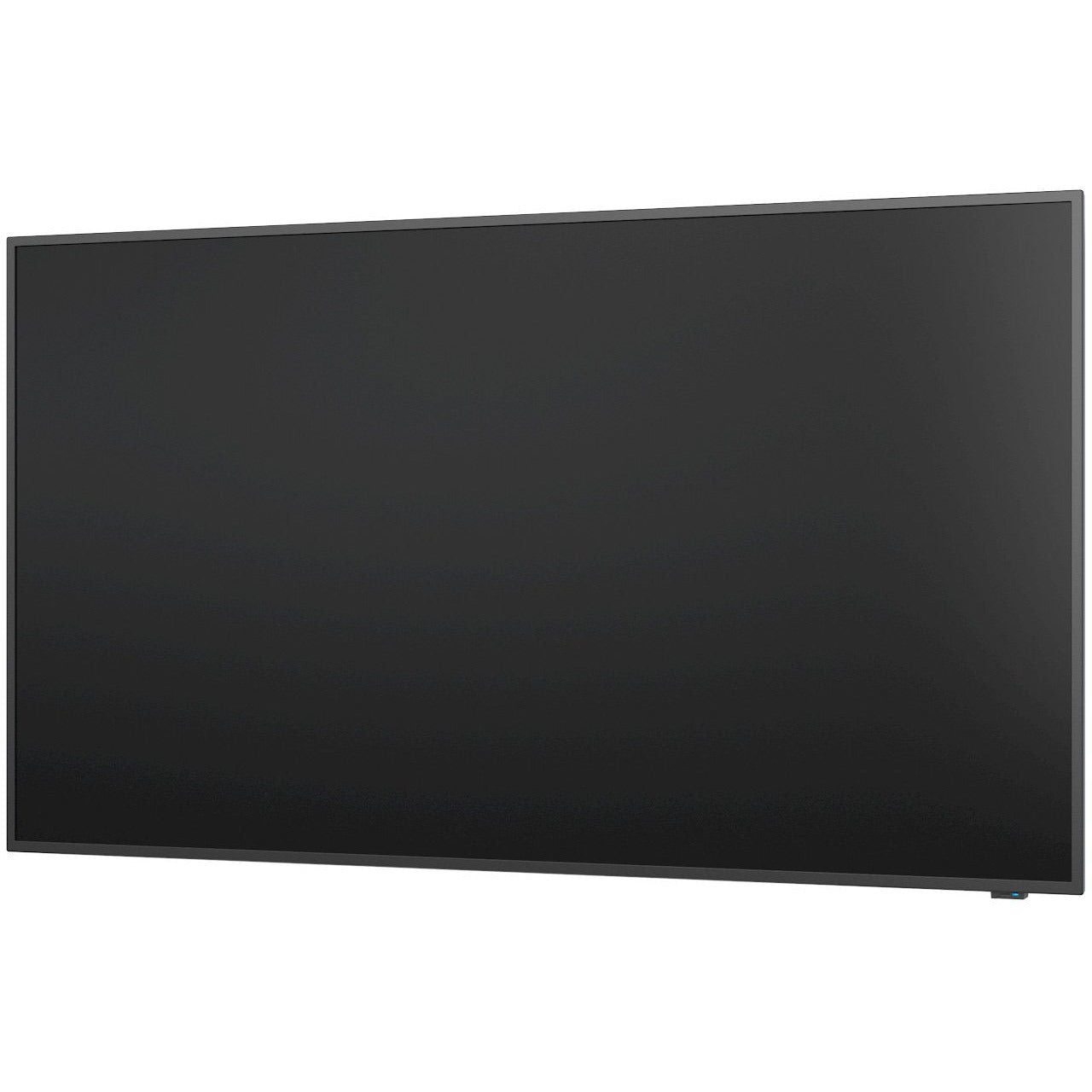

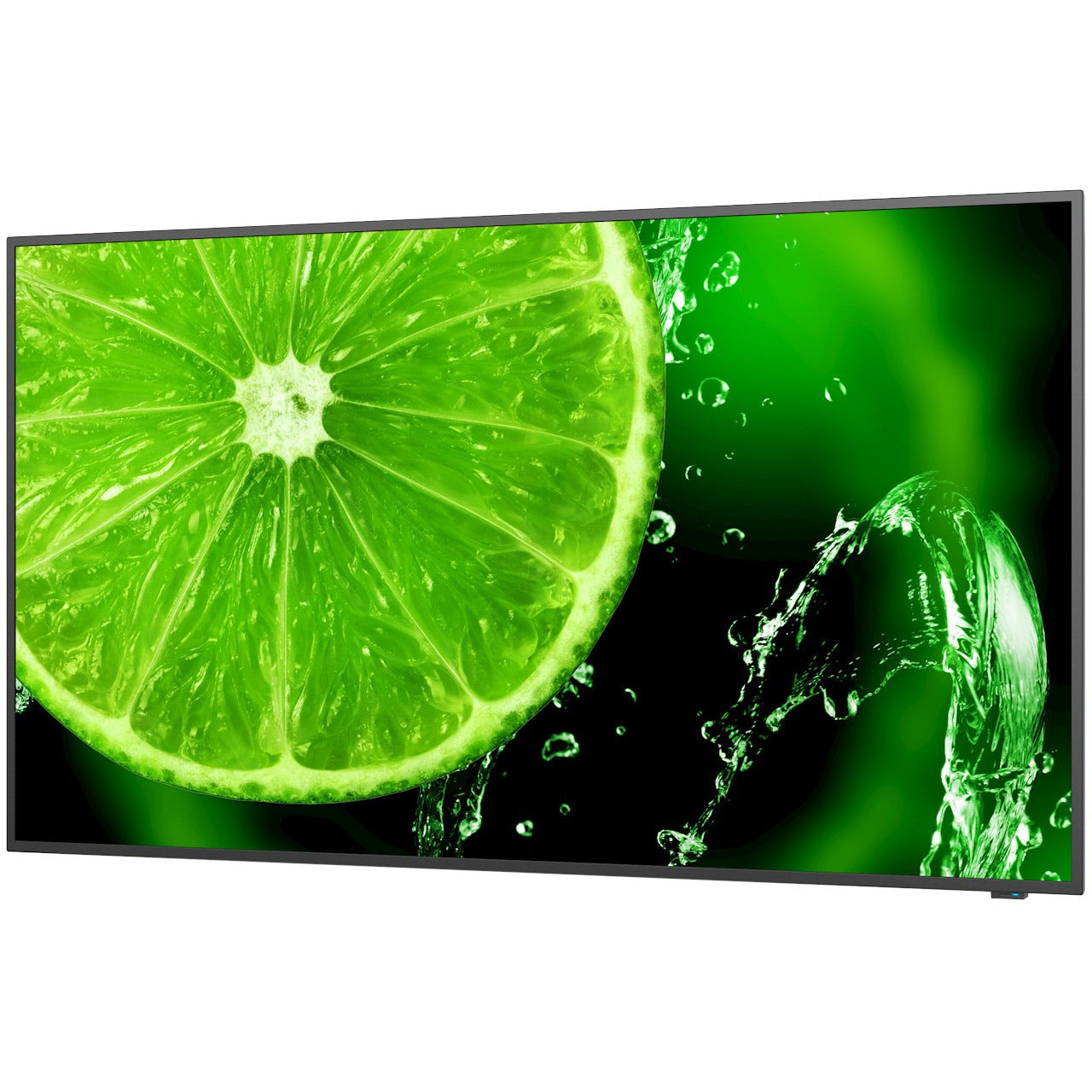

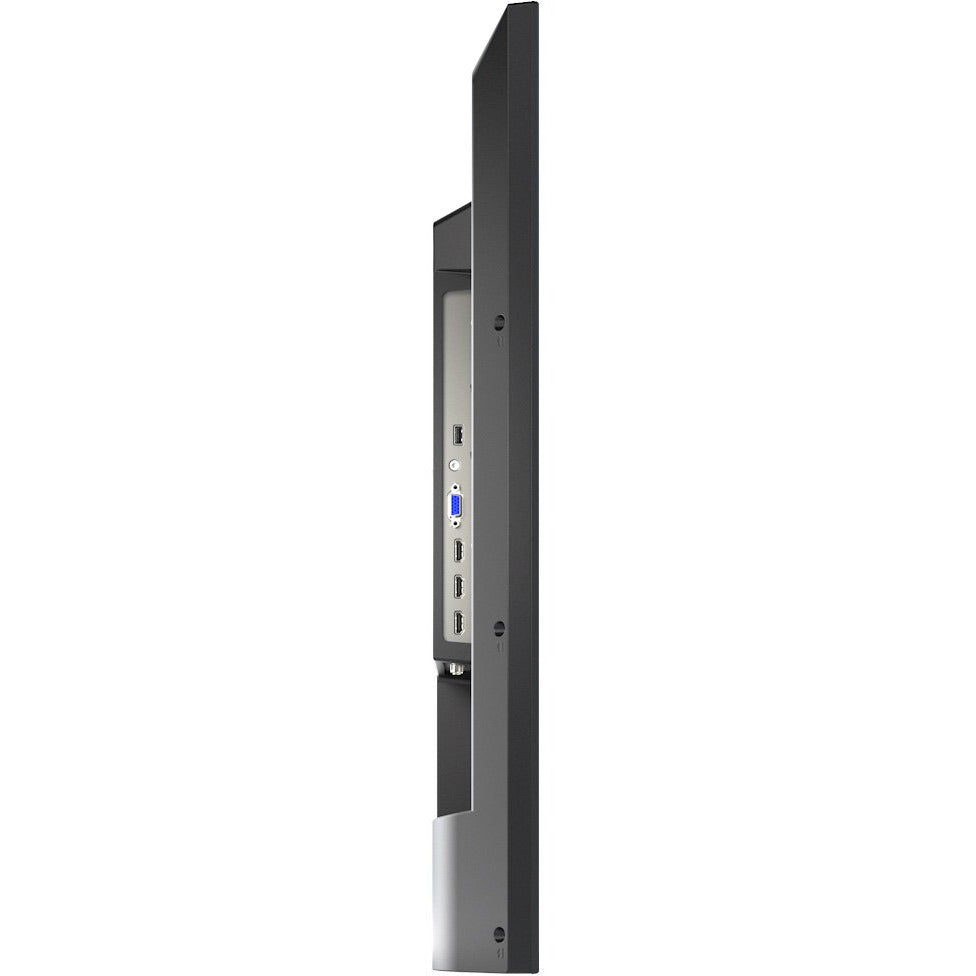

NEC MultiSync® E498 LCD 49" Essential Large Format Display

NEC MultiSync® E498 LCD 49" Essential Large Format Display

SKU:60005052

Regular price £598.83 GBP
Regular price Sale price £598.83 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Functionality you need, at the price you want

A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.

An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.

For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.

Benefits

  • Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
  • Professional integration – enriched with essential RS232 functionality, IR and button lock out as well as digital audio output S/PDIF, the display can easily be integrated into professional applications in public environments.
  • Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.

DISPLAY

Panel Technology IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 1,073.8 x 604
Screen Size [inch/cm] 48.5 / 123.2
Aspect Ratio 16:9
Pixel Pitch [mm] 0.280
Brightness [cd/m²] 350
Contrast Ratio (typ.) 1200:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (10bit)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] Standard (1)
Supported Orientation Landscape

RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1280 x 720;1920 x 1080;1920 x 1200;3840 x 2160;4096 x 2160;640 x 480;720 x 480;720 x 576

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 15 - 136
Vertical Frequency [Hz] 24 - 75

CONNECTIVITY
Input Video Analogue 1 x VGA; Component (RCA); Composite (RCA)
Input Video Digital 3 x HDMI
Input Audio Analogue 1 x 3,5 mm jack
Input Audio Digital 3 x HDMI
Input Control LAN 100Mbit; RS232
Input Data 1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external devices)
Output Audio Analogue 1 x 3,5 mm jack
Output Audio Digital 1 x SPDIF
Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input

SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 1 sensors, triggered actions programmable

ELECTRICAL
Power Consumption Eco/max. [W] 109 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Supply 100-240 V AC; 50/60 Hz; internal

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 10 to 80
Storage Humidity [%] 5 to 85
Storage Temperature [°C] -10 to +60

MECHANICAL
Dimensions (W x H x D) [mm] Without stand: 1,102.8 x 608 x 71.6
Weight [kg] Without stand: 12.4
Bezel Width [mm] 12.5 (left, right and top); 13.9 (bottom)
VESA Mounting [mm] 4 holes; 400 x 200 (FDMI); M6

MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s

AVAILABLE OPTIONS
Accessories Feet (ST-32E2); Trolley (PDMHM-L); Wall mount (PDW S 32-55L)

GREEN FEATURES
Energy Efficiency Energy consumption: 77 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards EnergyStar 8.0

ADDITIONAL FEATURES
Special Characteristics Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
Safety and Ergonomics EMC Class B; Energy Star 8; FCC; PSB; RCM; TÜV S; UL/C-UL; VCCI
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty 3 years warranty incl. backlight
Operating Hours 16/7
