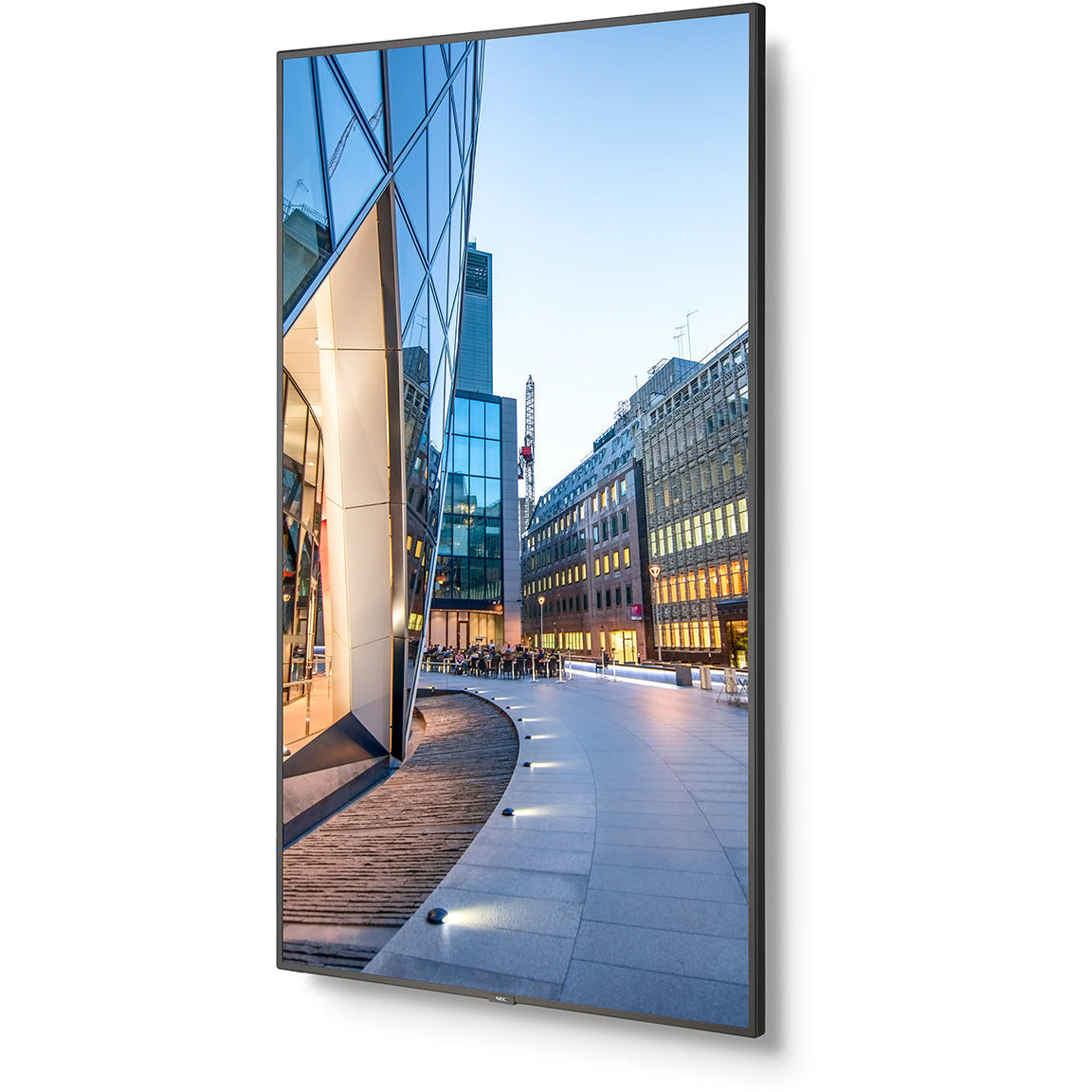

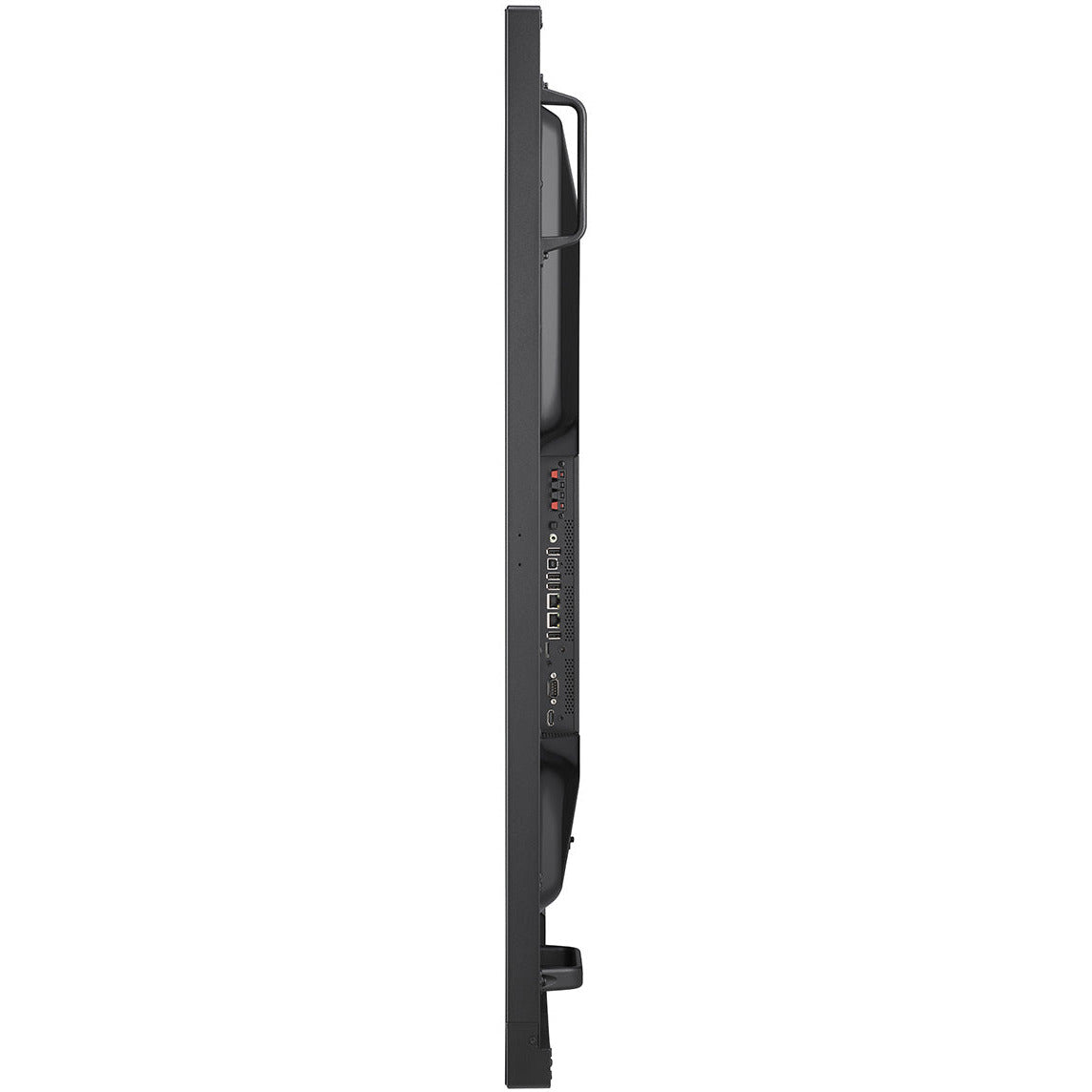

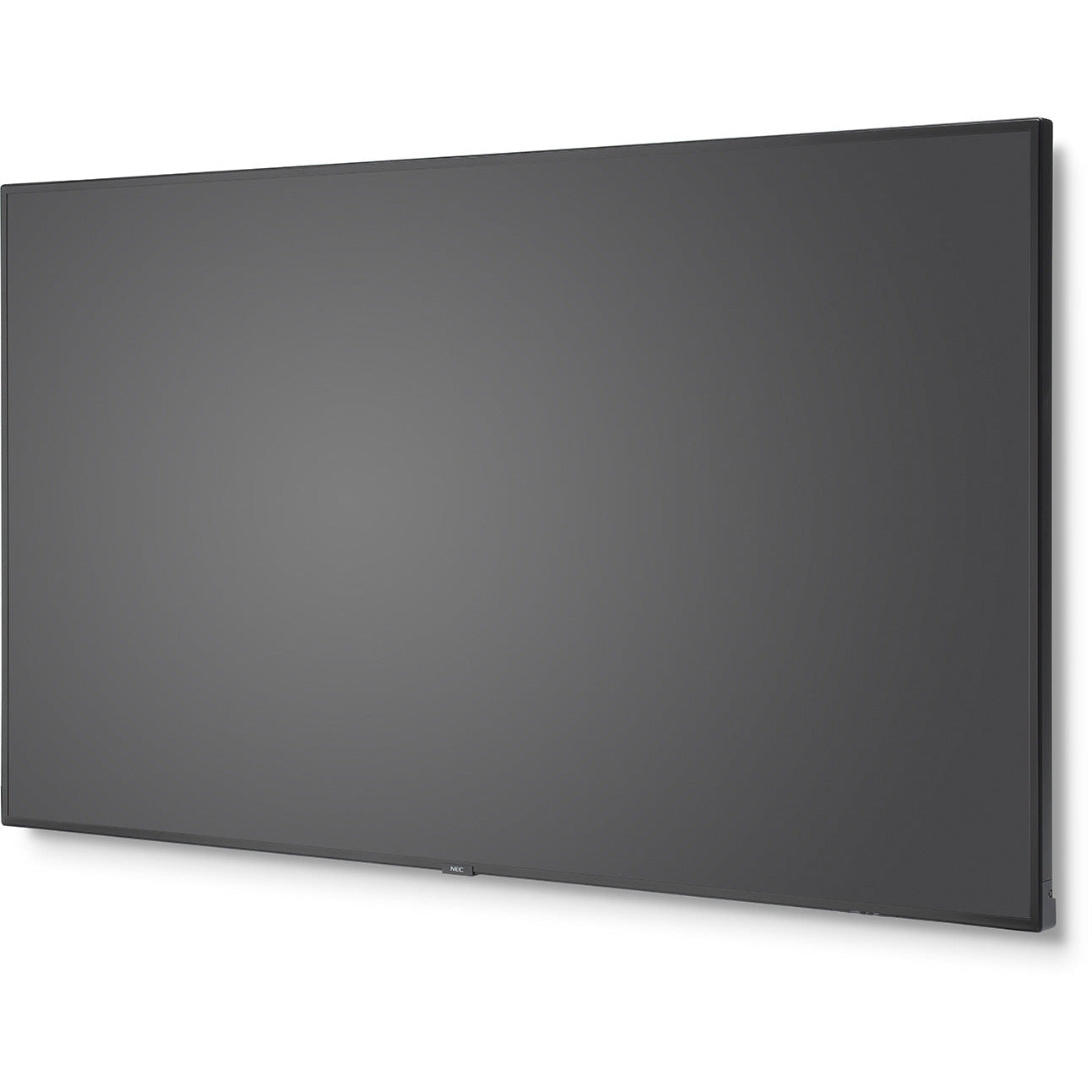

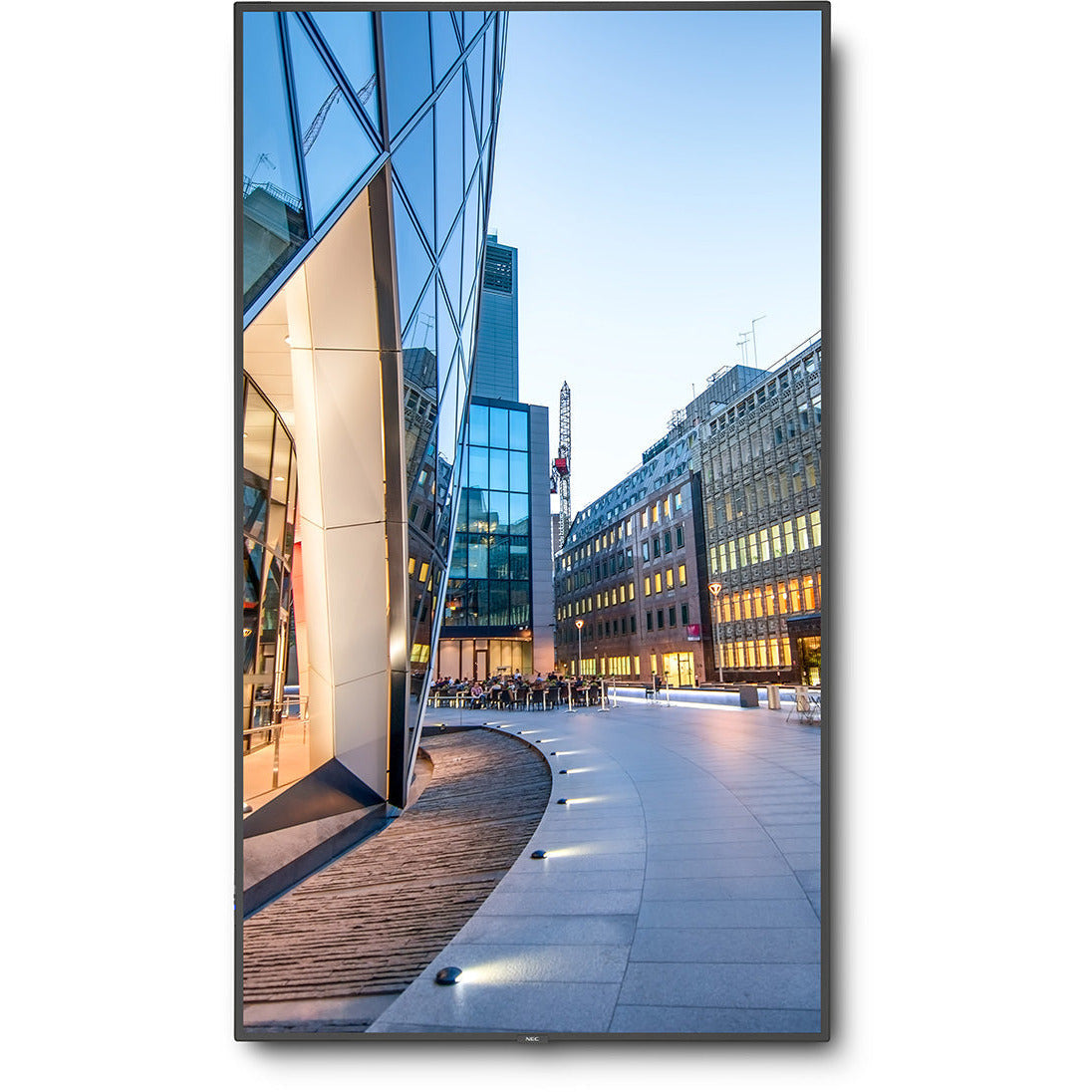

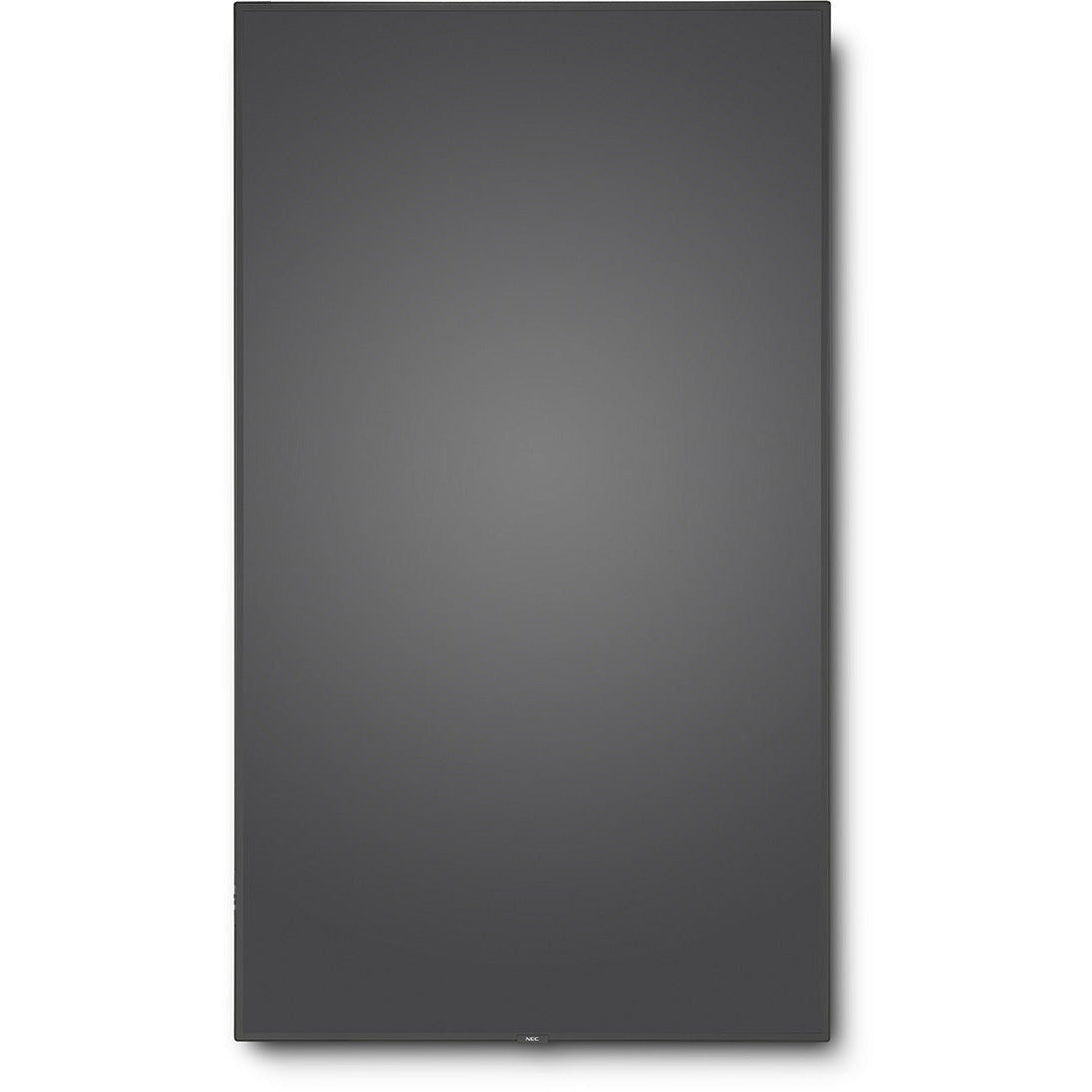

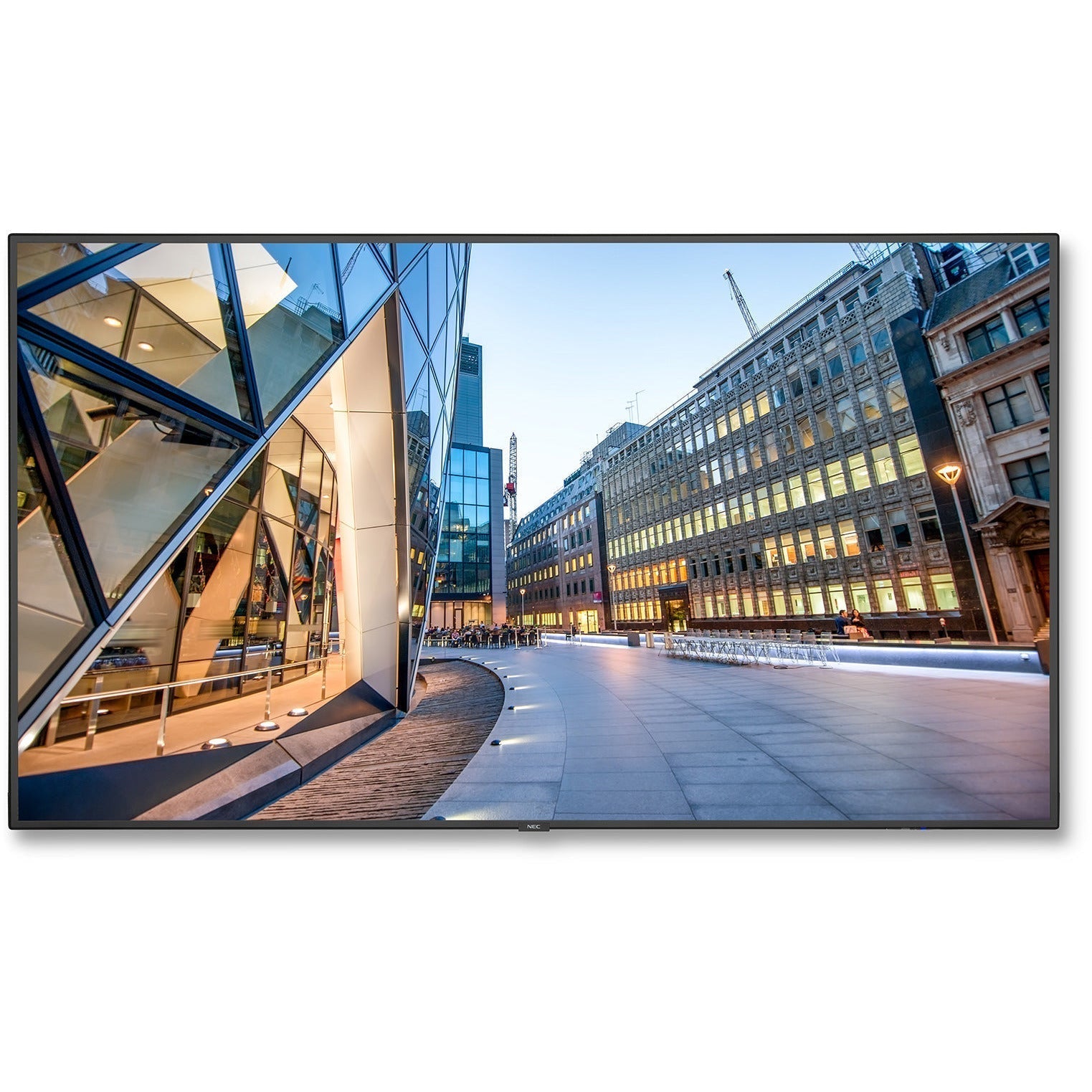

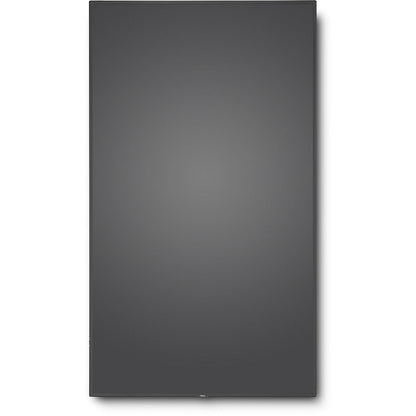

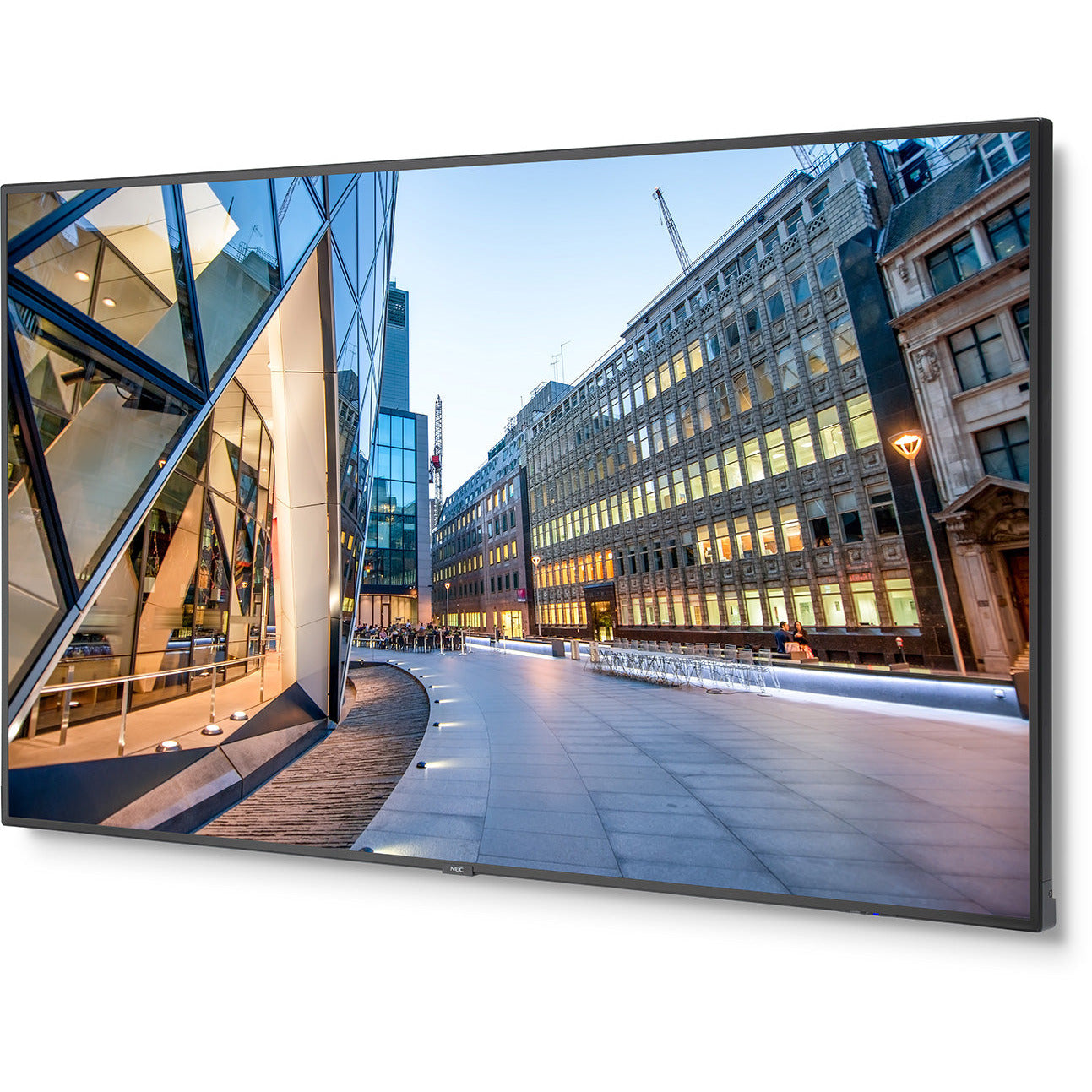

NEC MultiSync® C981Q LCD 98" Midrange Large Format Display

NEC MultiSync® C981Q LCD 98" Midrange Large Format Display

SKU:60004516

Regular price £10,205.12 GBP
Regular price Sale price £10,205.12 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Stunning visibility for presentations and digital signage

Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times.

Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the NEC MultiSync C Series meets the demands of today’s meeting environments. Slim bezels and a modern appearance complement state of the art architecture to integrate perfectly into interior designs. With embedded office functionalities, start up ad-hoc meetings without the hassle of setting up the display environment first. Wake-up on connection is just one of many features which make meetings more efficient.

With the NEC MultiSync C981Q, presenters will feel confident during meetings of up to 15 participants whilst retailers and hospitality facilities can boost sales through digital signage.

Benefits

  • Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.
  • Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  • Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
  • Future-proof signal connectivity and processing – numerous native UHD resolution inputs with 60Hz refresh rate including DisplayPort, HDMI and an option slot for OPS Slot-in PCs, plus automatic upscaling to UHD for other signals, provide “pixel-free viewing“ on a large scale.
  • Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.

DISPLAY

Panel Technology IPS with Direct LED backlights
Active Screen Area (W x H) [mm] 2,158.9 x 1,214.4
Screen Size [inch/cm] 98 / 248
Brightness [cd/m²] 350, 250 (shipment setting)
Contrast Ratio (typ.) 1300:1
Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn] 1.073 (10bit)
Response Time (typ.) [ms] 8 (grey-to-grey)
Haze Level [%] Pro (28)
Supported Orientation Landscape; Portrait

RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1920 x 1080;1920 x 2160;3840 x 2160;4096 x 2160

SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 91.1
Vertical Frequency [Hz] 24 - 85

CONNECTIVITY
Input Video Digital 2 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
Input Audio Analogue 1 x 3,5 mm jack
Input Audio Digital 2 x DisplayPort; 3 x HDMI
Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (Downstream); 1 x USB 2.0 (MediaPlayer); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
Output Audio Analogue 1 x 3,5 mm jack
Output Control 1 x LAN 100Mbit

OPEN MODULAR INTELLIGENCE
OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W] 4.7 / 75
Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard)

SENSORS
Ambient Light Sensor Integrated, triggered actions programmable
Human Sensor Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
NFC Sensor Integrated, 2cm range, free NEC Android App required

ELECTRICAL
Power Consumption Eco/max. [W] 240 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80

MECHANICAL
Dimensions (W x H x D) [mm] Without stand: 2,194 x 1,249 x 93
Weight [kg] 90
Bezel Width [mm] 15.9 (left and right); 15.9 (top and bottom)
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); 600 x 400 (FDMI); M8
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] 2,355 x 1,454 x 414
Packaging Weight [kg] 116
Colour Bezel Pantone 426M (black)
Material Metal

MEDIAPLAYER
Supported File Storage / File System MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling

AVAILABLE OPTIONS
Accessories Feet (ST-801); Speaker (SP-TF1); Trolley (PD02MHA); Wall mount (PDW T XL-2)
Compute Module Slot NEC Compute Module; Raspberry Pi Compute Module 1 and 3
OPS Slot HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C Quad 3G SDI

GREEN FEATURES
Energy Efficiency Ambient light sensor; Carbon savings meter; ECOMode; Energy consumption: 240 kWh/1000 h; Energy efficiency class: G; Local dimming

ADDITIONAL FEATURES
Special Characteristics 12-bit Look Up table; Ambient Light Sensor; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron Connected Support; DICOM Simulation; Display Browser Control; Emergency Notification; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2; OmniColor Control; OSD rotation for portrait mode; PIN as theft protection; PJLink Support; Powered USB-Port; Removable Logo; Scheduler; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log function
Colour Versions optional coloured overframes
Safety and Ergonomics CE; EAC; EMC Class B; FCC; SASO; TÜV GS; UL/C-UL or CSA; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Remote Control; USB cable
Warranty 3 years warranty incl. backlight; optional 4. + 5. year warranty extension 1
Operating Hours 24/7
